Turn Signal Bulb: Service and Repair



Light Bulb For Turn Signal/parking Light, Replacing

Removing
- Remove headlight.

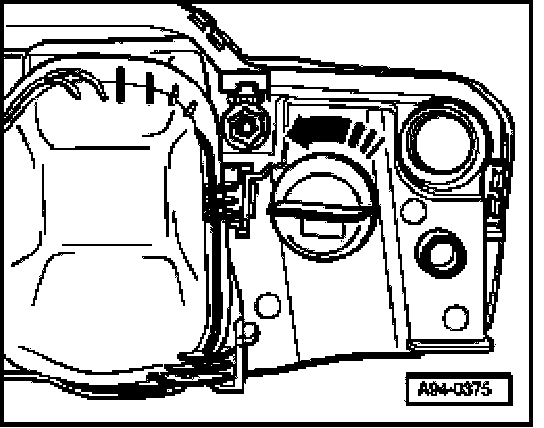

- Turn bulb socket counter clockwise -arrow- and remove from housing.
- Remove bulb from socket.

Installing
Installation is reverse of removal, paying attention to the following:
- Insert new bulb into housing, do not touch glass portion with bare hands.
- Install headlight.
