Fog Lights, Removing and Installing

Fog Lights, Removing And Installing

Removing
- Switch ignition off and remove ignition key.
- Turn light switch into -0- position.

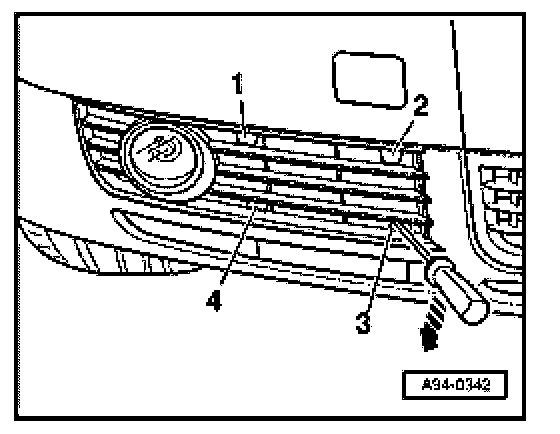

- Disengage catches -1- to -4- using a screwdriver -arrow- and pull off air inlet grid in lower part of bumper.







- Remove bolts -arrows-.
- Remove headlight insert.
- Unplug connector.

Installing
Installation is reverse of removal, paying attention to the following:
- Adjusting fog lights.

Tightening torque

Component Nm
Fog light housing to bumper 5
