Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulbs, Replacing - Through 10.04

Removing
- Remove fog light.

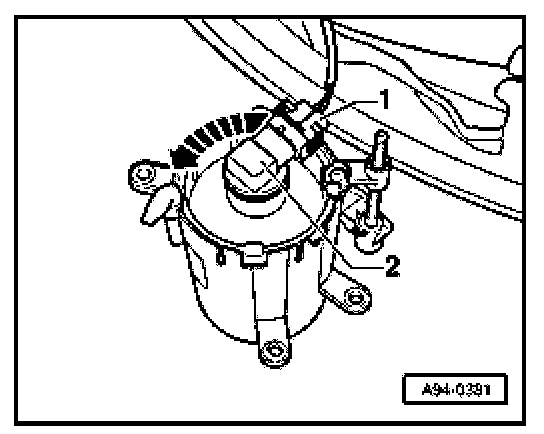

- Unplug connector -1- at bulb.
- Rotate light bulb -2- counterclockwise -arrow- and remove it from fog light housing.

Installing
Installation is reverse of removal, paying attention to the following:
- Do not touch glass portion with bare hands.
- Secure light bulb by turning clockwise.
- Adjusting fog lights.
