Display Group 126



Display Group "126"

Information from Convertible Top Control Module J256 and information on operating status of CAN-Bus comfort system

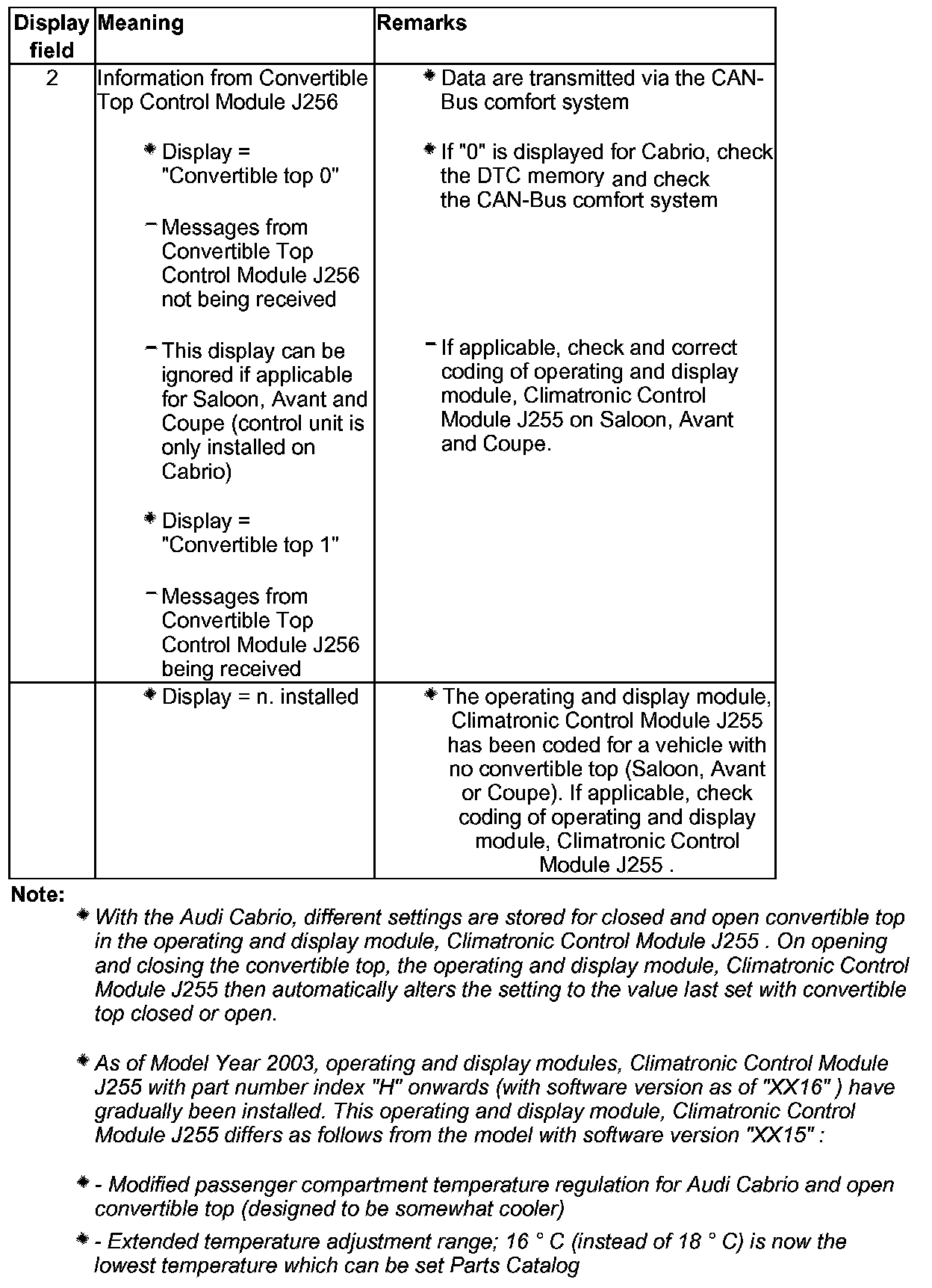

Display Field 2:

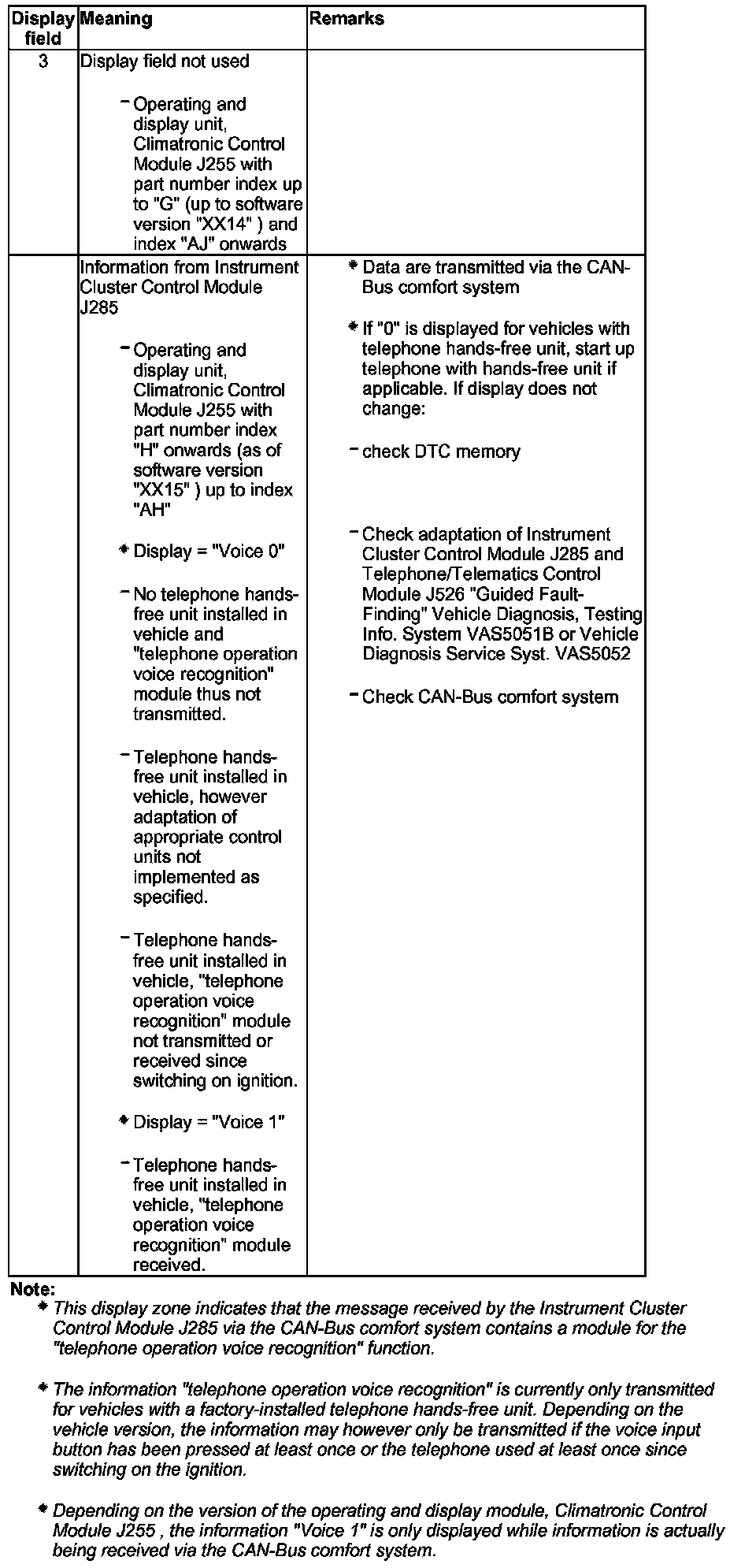

Display Field 3:

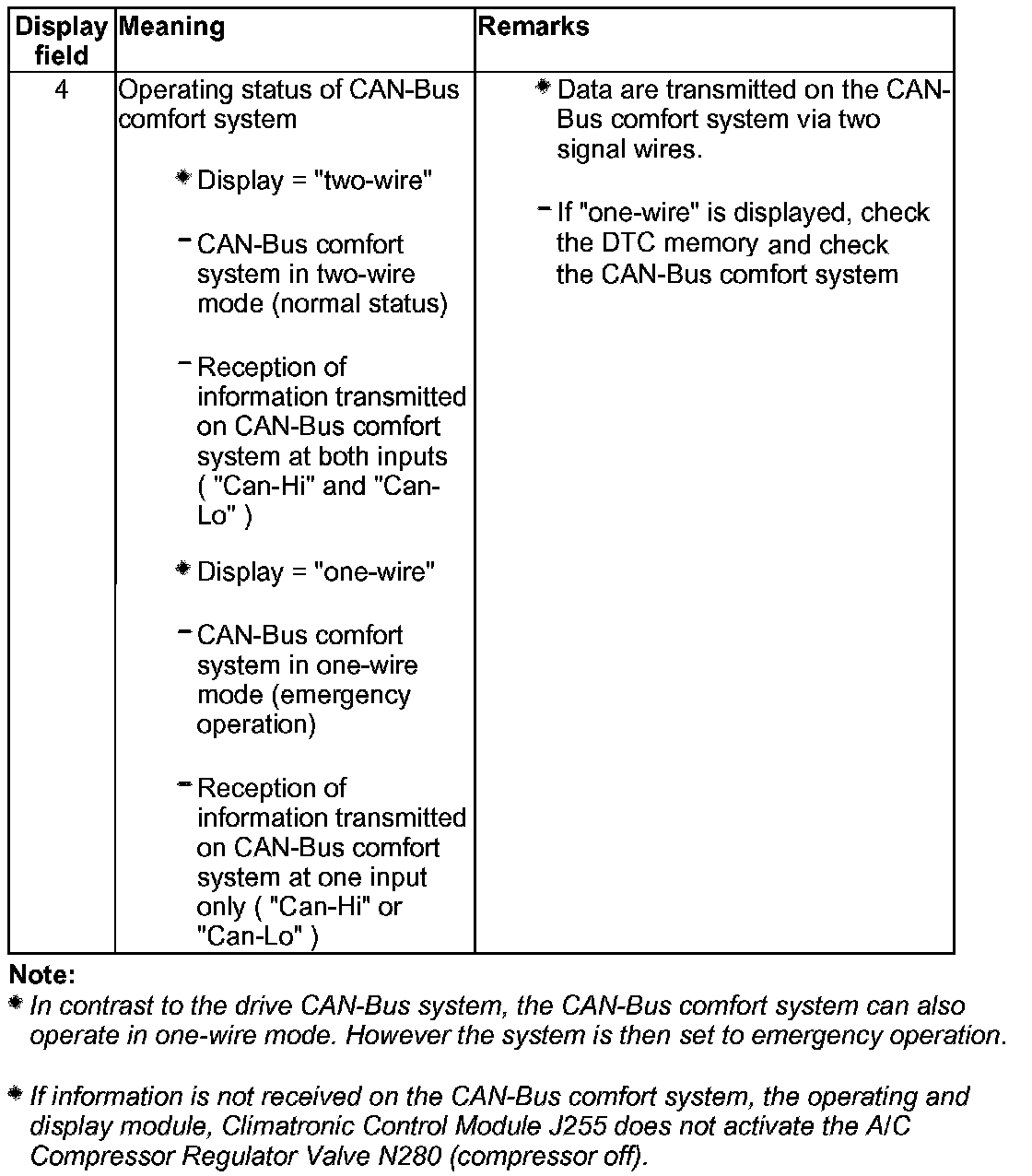

Display Field 4:
