Display Group 081



Display Group "081"

Vehicle VIN transmitted by Instrument Cluster Control Module J285 and, depending on version of operating and display module, Climatronic Control Module J255 , certain items of information from Instrument Cluster Control Module J285

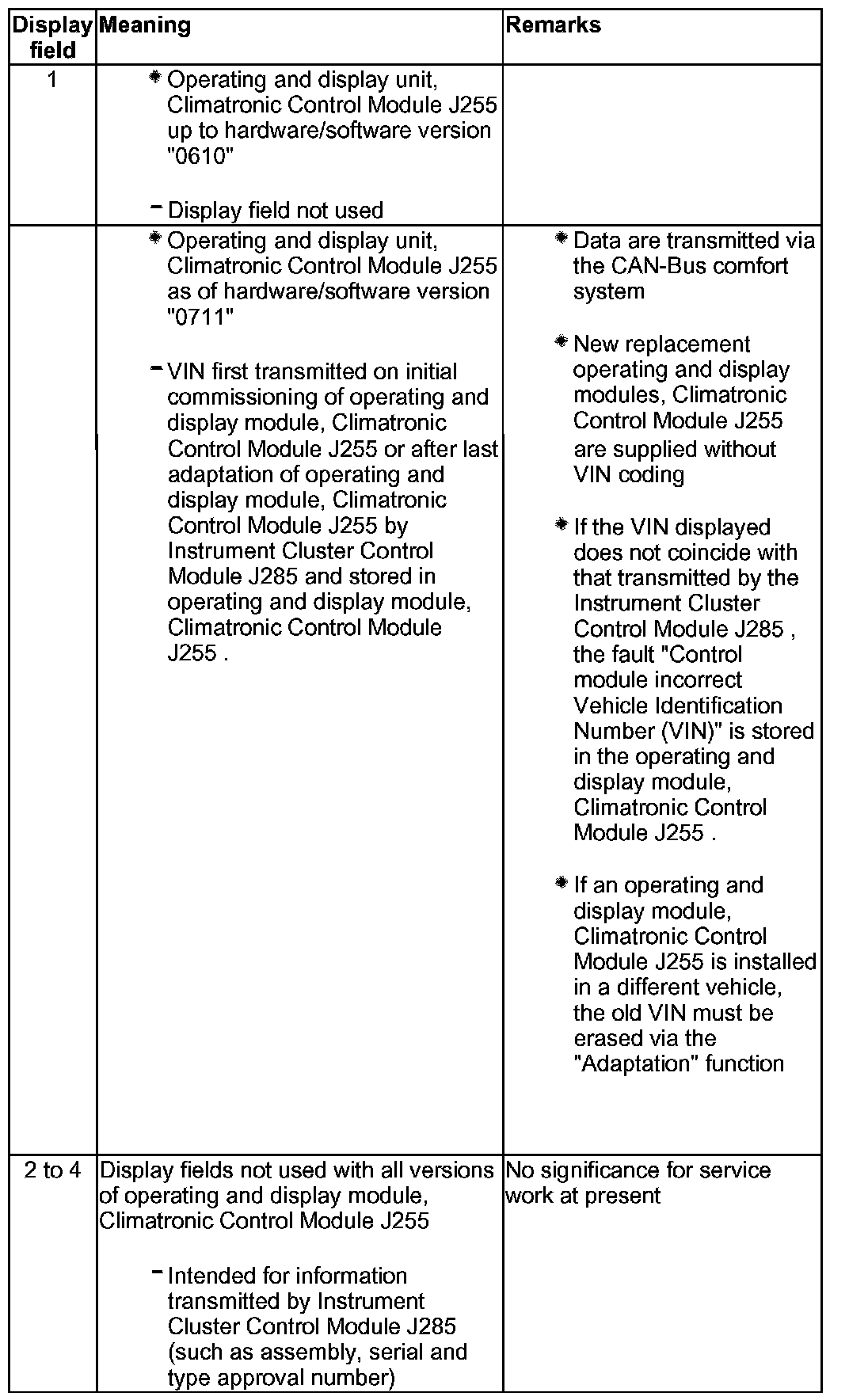

Display Field 1 - 4:
