Display Group 008
Display Group 008

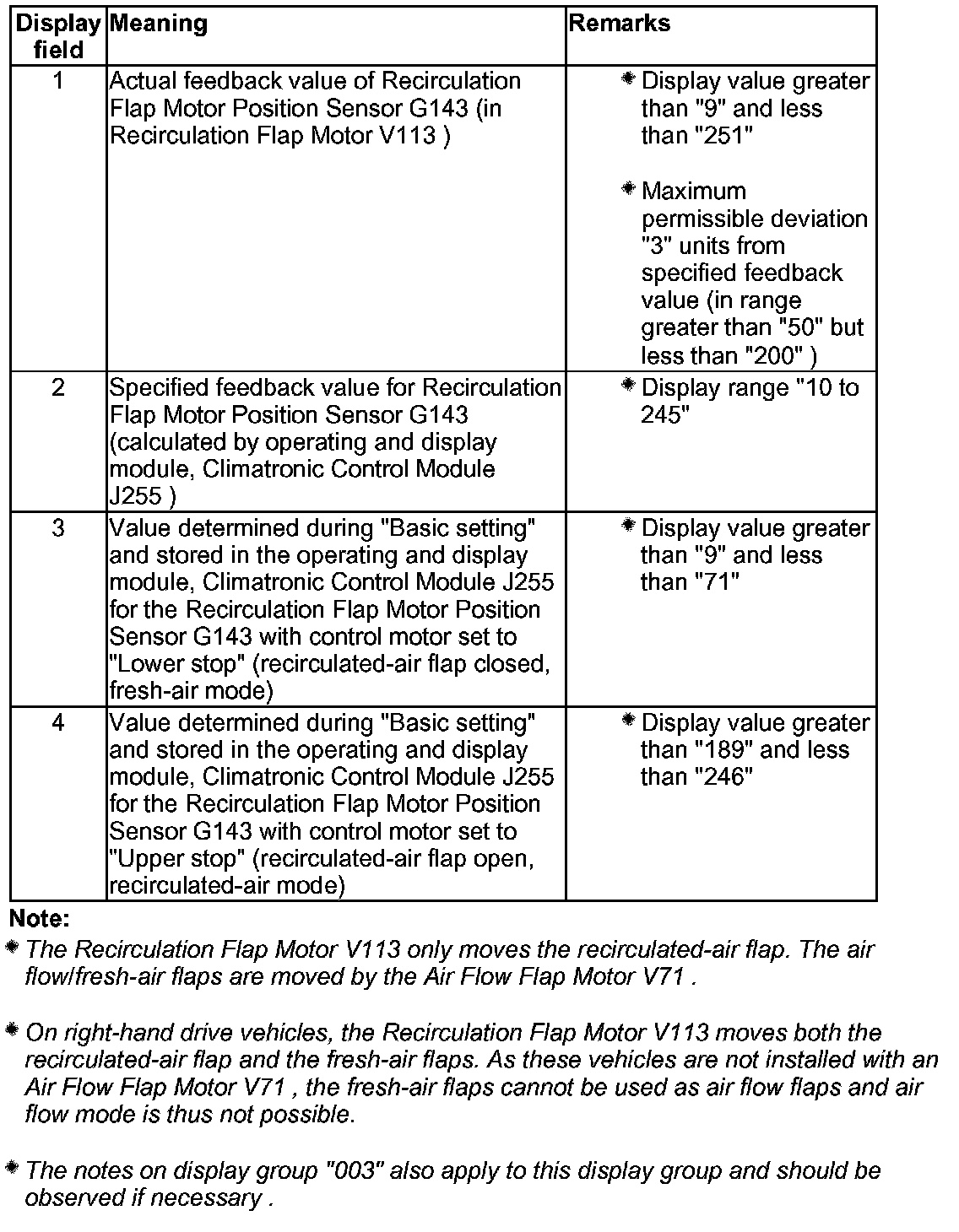

Display Group "008"
Recirculation Flap Motor V113
Display Field 1 - 4:
