Display Group 004
Display Group 004

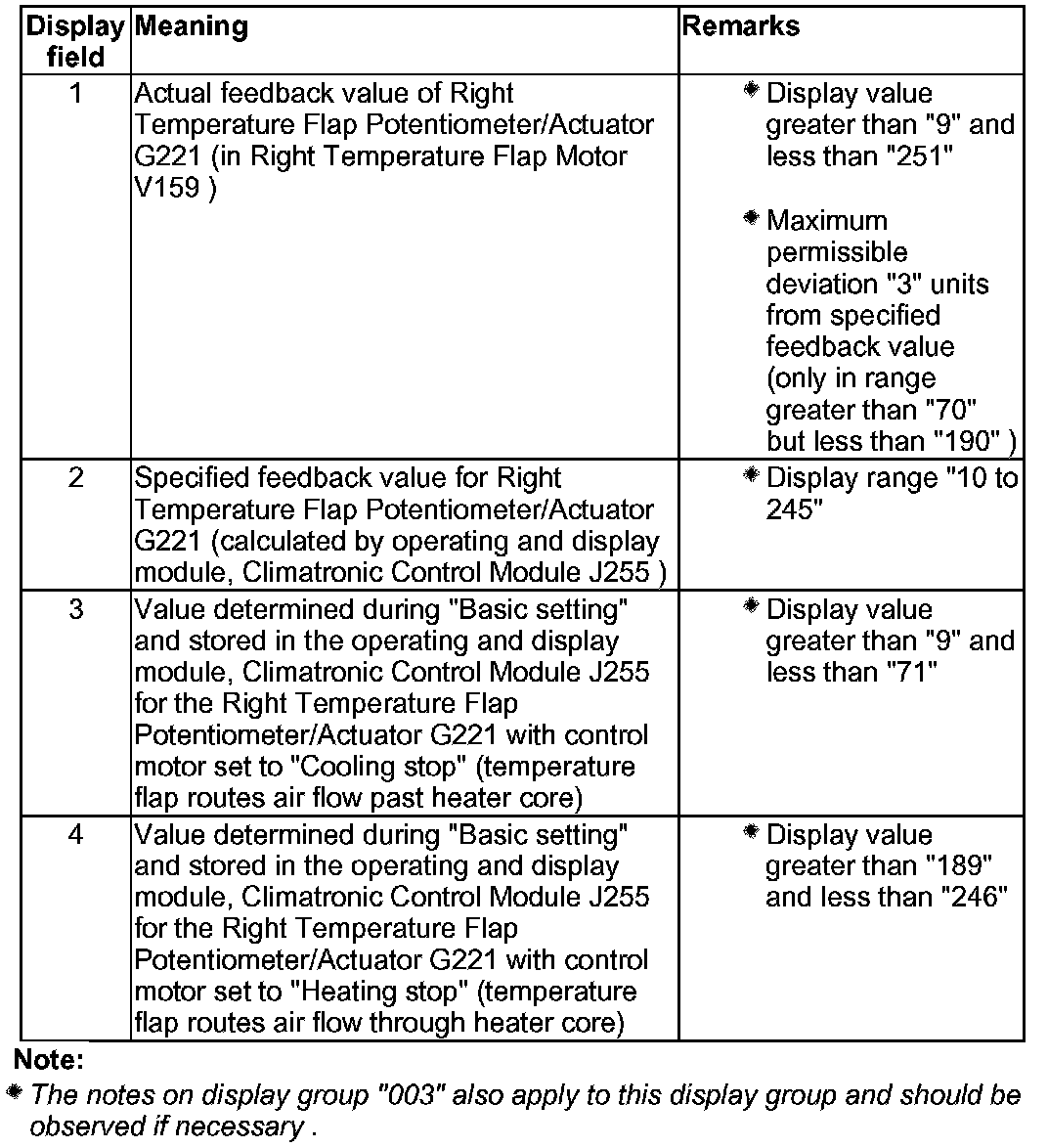

Display Group "004"
Right Temperature Flap Motor V159
Display Field 1 - 4:
