Assignment Of Contacts On Multi-Pin Connector On Instrument Cluster

Assignment Of Contacts On Multi-pin Connector On Instrument Cluster

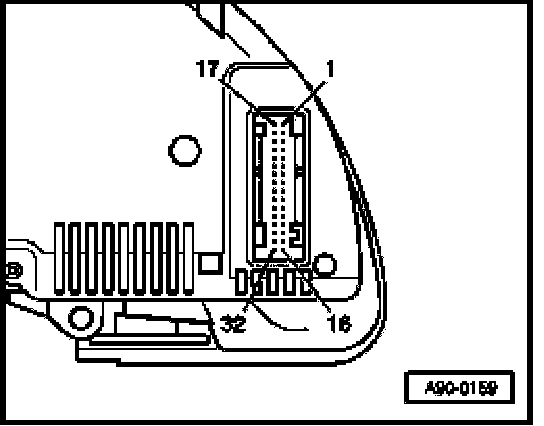

Multi-pin connector 32-pin, blue







1. Low washer fluid level
2. Low coolant level
3. Fuel gauge sensor sensor
4. Coolant temperature
5. Push button circuit 2, navigation
6. Push button circuit 3, navigation
7. Push button circuit, Telematics
8. Menu switch
9. Not assigned
10. Hood switch
11. Fuel gauge sensor 2 (Quattro)
12. Menu selection switch (out A)
13. Not assigned
14. Not assigned
15. Not assigned
16. FDR/ASR (= ESP)
17. CAN comfort high
18. CAN comfort low
19. CAN Infotainment low
20. CAN Infotainment high
21. Outside temperature -input
22. S-contact
23. Oil level/oil temperature
24. Level control
25. Menu switch (Enter)
26. Not assigned
27. Not assigned
28. Menu switch (out B)
29. Not assigned
30. Transponder 2
31. Transponder 1
32. Terminal 31 (sensor)

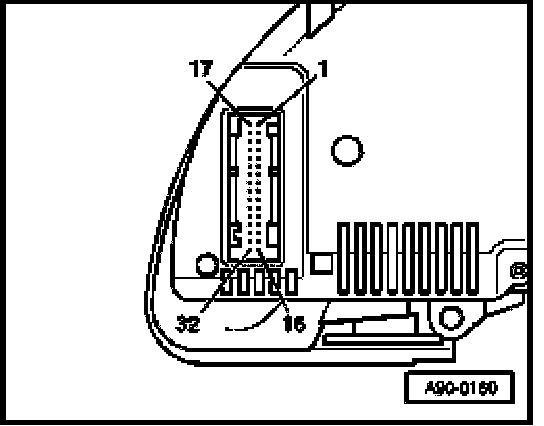

Green 32-pin multi-pin connector







1. Terminal 58d
2. Terminal 30
3. Terminal 15
4. Not assigned
5. Speedometer input
6. Speedometer output 2
7. Airbag inverse
8. Right turn signal
9. Low brake fluid level
10. Left turn signal
11. Trailer turn signal
12. CAN powertrain low
13. CAN powertrain high
14. Terminal 61/charge indicator
15. Not assigned
16. Oil pressure 2
17. Terminal 58s
18. Terminal 31 load
19. Terminal 31 load
20. Not assigned
21. Speedometer output 1
22. ABS warning
23. K-wire
24. CAN powertrain screen
25. Tank cap switch
26. CAN-Diagnostic low
27. CAN-Diagnostic screen
28. CAN-Diagnostic high
29. Automatic vertical headlight aim control system
30. Belt buckle
31. Outside buzzer
32. Brake pad wear
