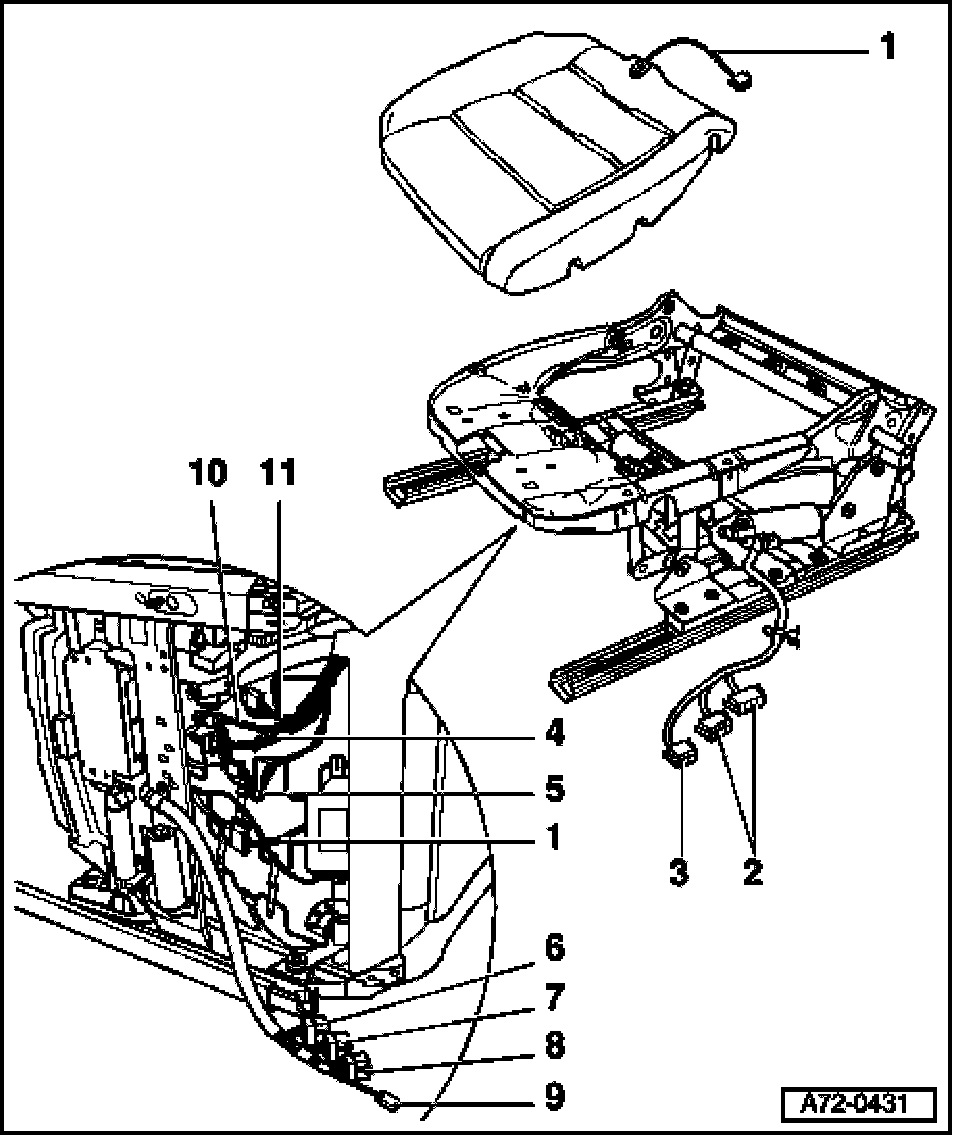

Seat Wiring Assignment

Seat Wiring Assignment







1. Seat heating wiring harness
2. Seat adjustment connectors (2x)
3. 4-way lumbar support connector
4. Electric lumbar support wiring harness, inboard side
5. Backrest heating wiring harness
6. Buckle interrogation connector (black)
7. Seat heating connector (green)
8. Power supply connector (red)
9. Airbag connector (yellow)
10. Airbag wiring harness
11. Electric lumbar support wiring harness for 4-pin side airbag
