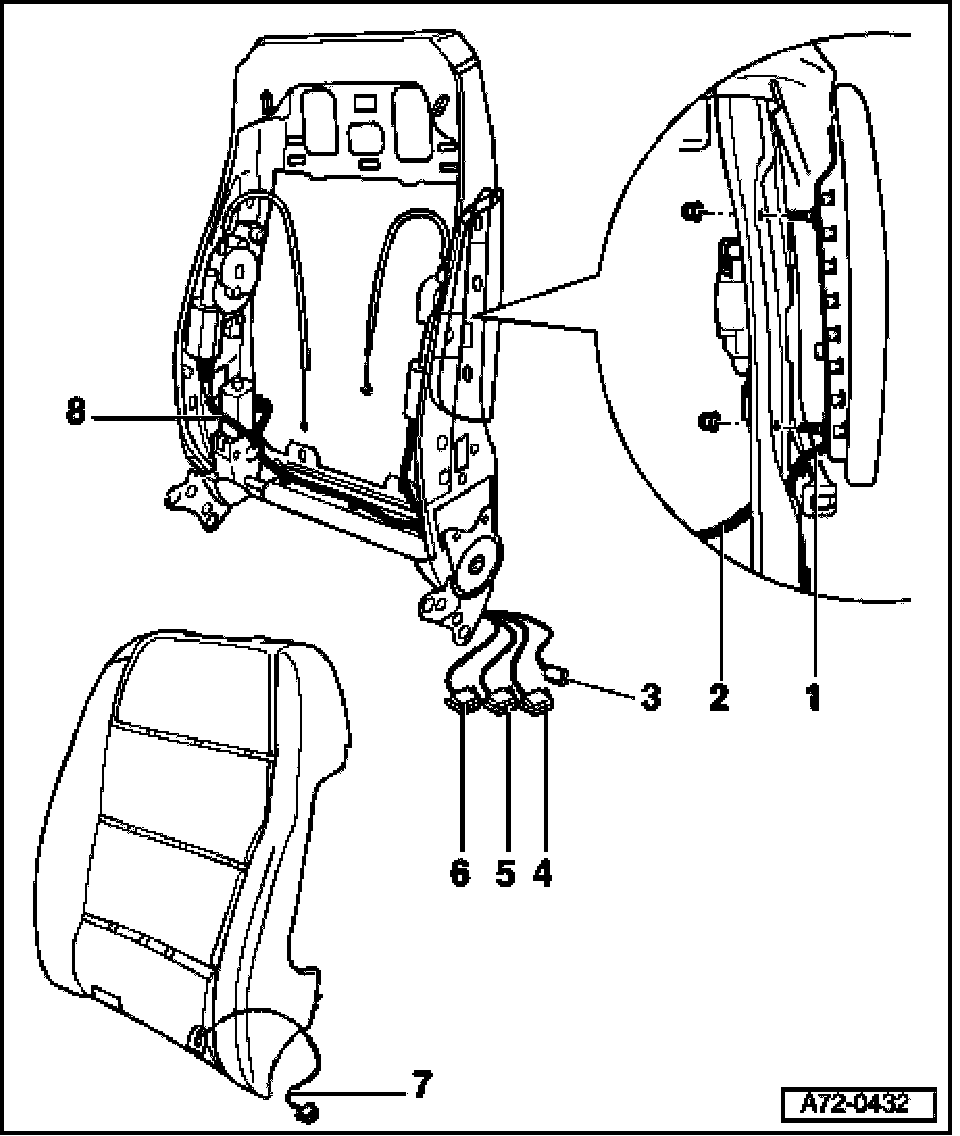

Backrest Wiring Assignment

Backrest Wiring Assignment







1. Airbag wiring harness
2. Electric lumbar support wiring harness for 4-pin side airbag
3. Airbag connector
4. Electric lumbar support connector for 4-pin side airbag
5. Electric lumbar support connector
6. Backrest heating connector
7. Backrest heating wiring harness
8. Electric lumbar support wiring harness, inboard side
