Microswitch For Variable Convertible Top Compartment, Removing and Installing

Microswitch For Variable Convertible Top Compartment, Removing And Installing

- Remove variable convertible top compartment

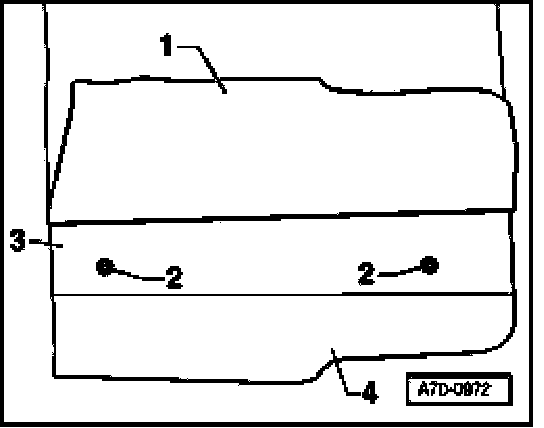

- Pull carpet - 1 - back (convertible top compartment lining) on right side until both bolts - 2 - are accessible.
- Bond carpet with D 001 200.

- Remove bolts - 2 - (2x).
- Tightening torque 4 Nm

- Detach convertible top compartment center section - 3 - from right side section - 4 -.

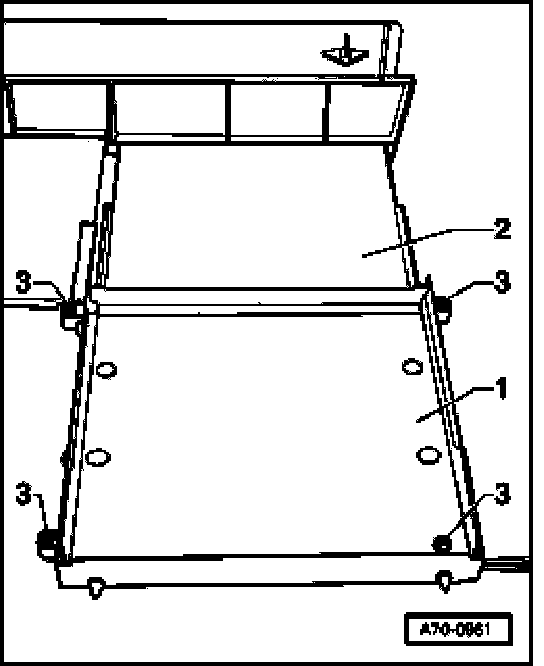

- Pull side sections - 1 - and - 2 - apart.
- Remove bolts - 3 - (4x) from inner lid.
- Tightening torque 2 Nm

- Detach inner lid - 1 -.

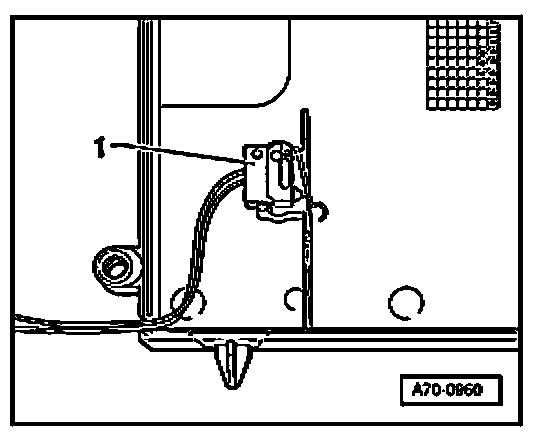

- Carefully drill off microswitch weld on outside.







- Remove microswitch - 1 -.

- Installing
- Attach new microswitch - 1 - using soldering iron on outside.
- Installation is in reverse order of removal.
