Convertible Top Pump: Description and Operation

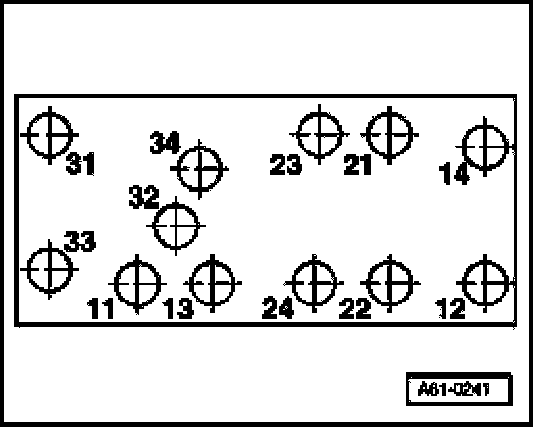

Hydraulic Pump Connection Chart







Fittings viewed from the hose side.


Main drive hydraulic cylinder

11 Left piston rod side
12 Left piston side
13 Right piston rod side
14 Right piston side

Tensioning bar drive hydraulic cylinder
21 Left piston rod side
22 Left piston side
23 Right piston rod side
24 Right piston side

Convertible top box lid hydraulic cylinder
31 Left piston rod side
32 Left piston side
33 Right piston rod side
34 Right piston side
