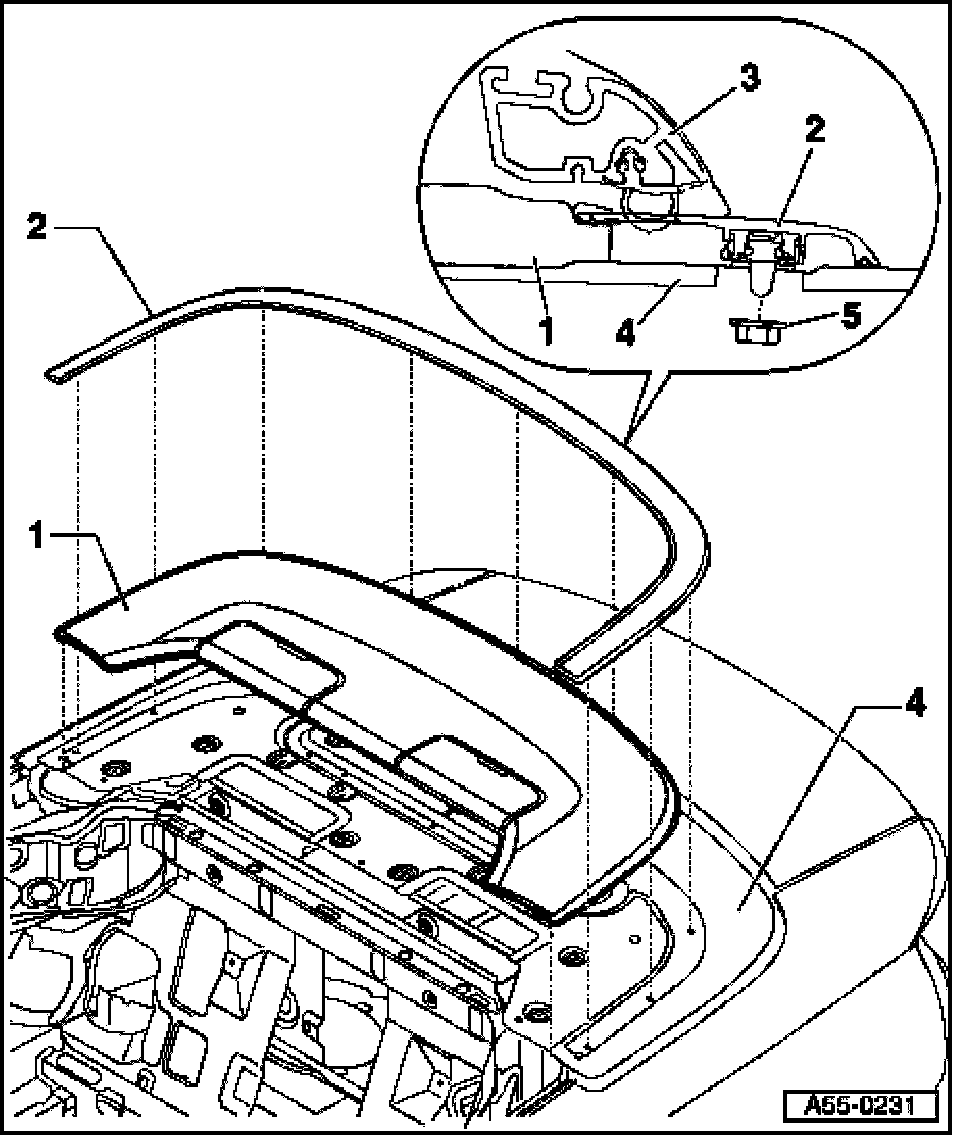

Convertible Top Box Lid Cover, Assembly Overview

Convertible Top Box Lid Cover, Assembly Overview







1. Convertible top box lid cover
- Removing:
- Insulation for convertible top box lid removed
- Trim strip -2- removed.
- Unscrew the sheet metal screws (2x) for fastening the front side of the insulation from the inside and remove it from the convertible top box lid.

2. Trim strip
- Insulation for convertible top box lid removed
- To remove, unscrew Hex nuts -5- and remove trim strip.
- Upon installation, observe tightening torque of 6.5 Nm, otherwise depressions will become visible at the trim strip fastening locations.

3. Convertible top
4. Convertible top box lid

5. Hex bolt
- 6.5 Nm
- Observe tightening torque, otherwise depressions will become visible at the trim strip fastening locations.
