Front Door Hinge: Service and Repair

Door hinge-assembly overview

Bottom door hinge







1 - Lower A-pillar
2 - Screw
- 32 Nm
3 - Screw
- 32 Nm
- Installed from vehicle interior.
4 - Bottom door hinge
- Two-part
- Mark hinge location before removal.
5 - Pop rivet
- Qty. 2
6 - Backing
7 - Impact member mount
8 - Front door
9 - Screw
- 32 Nm

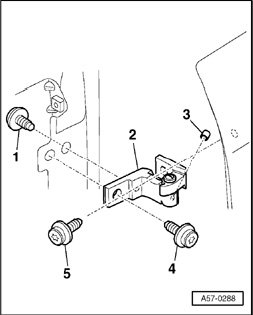

Upper door hinge
1 - Bolt (installed from inside of vehicle) (32 Nm)
2 - Upper door hinge
3 - Cover cap
4 - Screw (32 Nm)
5 - Screw (32 Nm)
