General Overview

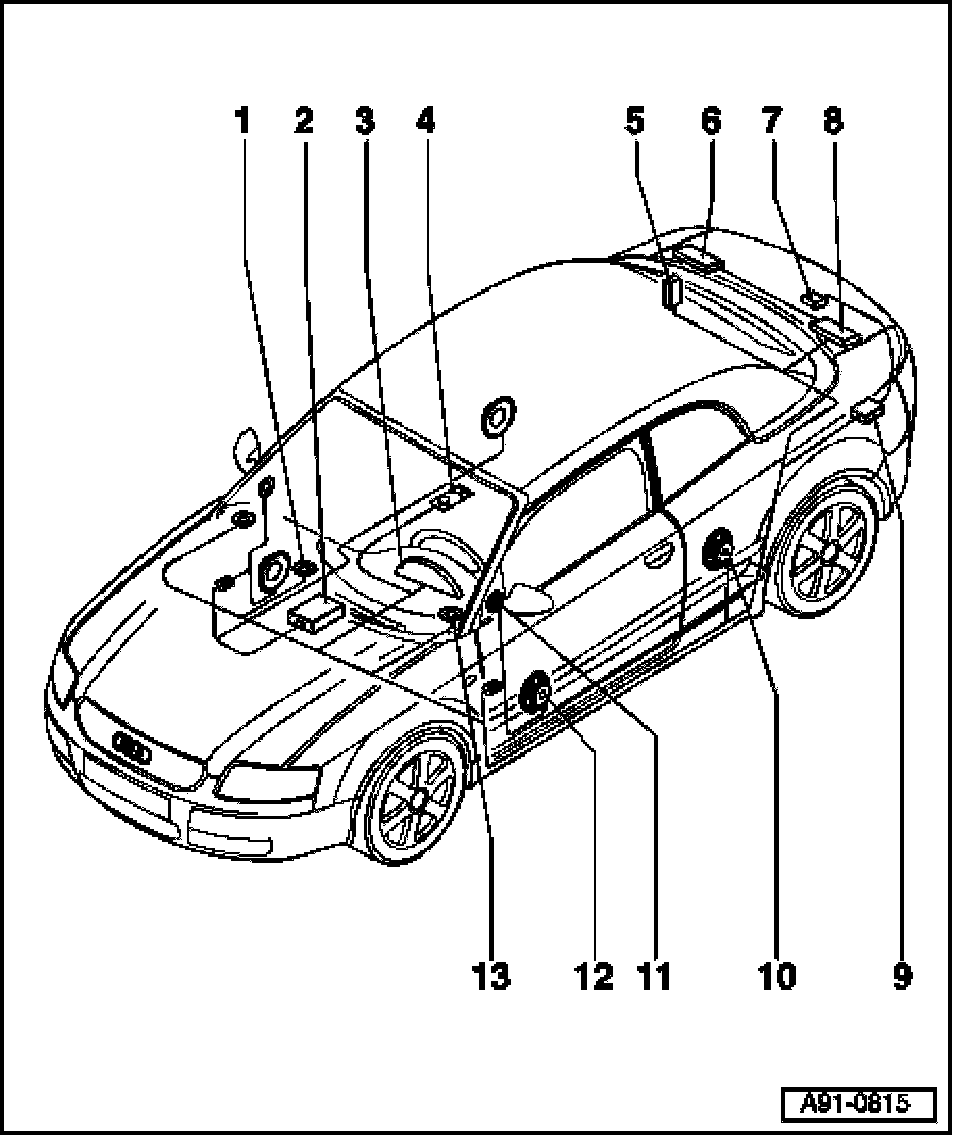

Navigation System IV, General Overview







1. Center loudspeaker
- In instrument panel

2. Radio -R-
- In center console

3. Display in instrument cluster
- Removing and installing instrument cluster

4. Function Selector Switch II -E272-
- In center console

5. Amplifier -R12- for the rear speaker or BOSE amplifier (only for "BOSE sound system")
- In luggage compartment, right rear behind side trim
- Amplifier for the rear speakers or BOSE amplifier removing and installing

6. Right Antenna Module -R109-
- Behind the rear lid trim

7. Navigation antenna (GPS) -R50
- Behind the rear lid trim

8. Left Antenna Module -R108-
- Behind the rear lid trim

9. Control module for navigation with CD mechanism -J401
- In left base mount in luggage compartment

10. Left Rear Speaker -R4-, Right Rear Speaker -R5-
- In rear side trim (bottom)
- Speaker (active): Mid-range/bass with treble bridge
- BOSE-speakers: Mid-range/bass

11. Treble speaker, left front -R20-, Treble speaker, right front -R22-
- In front door (top)

12. Bass speaker, left front -R21-, Bass speaker, right front -R23-
- In front door trim (bottom)

13. Left Front DSP Midrange Speaker -R103-, Right Front DSP Midrange Speaker -R104-
- In instrument panel
