Leak Detection Pump (LDP) -V144-, Removing and Installing

Leak Detection Pump (LDP) -V144-, removing and installing

Removing
^ Remove right-front wheel.
^ Remove cover for vacuum lines.
^ Remove right rear wheel housing liner.

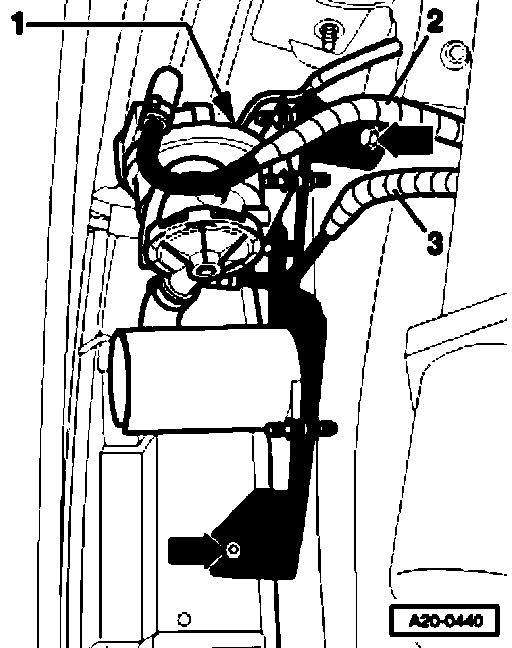

^ Disconnect hose connections -2- and -3- (connector coupling at metal sheet, engine side).
^ Remove bolts (arrows).
^ Remove Leak Detection Pump (LDP), disengage harness connector1- with ignition off and disconnect.

Installing
Installation is the reverse of removal, noting the following:

Note: Secure all hose connections using hose clamps appropriate for the model type, Refer to Parts supplier

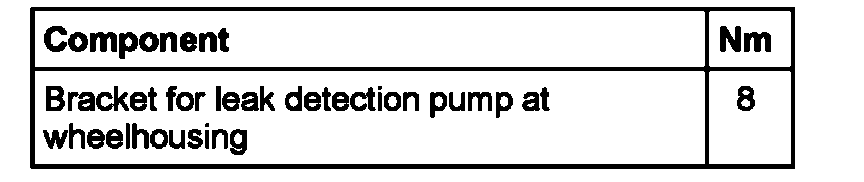

Tightening torque
