Readiness Code, Generating - I



Readiness Code, Generating

Requirements:
- Vehicle stationary.
- Electrical devices switched off (radiator fan must NOT run during test).
- Air conditioning switched off.
- Vehicles with automatic transmission: Selector lever in P or N position.

NOTE: If the test result is immediately displayed as "OK" after selecting a display group during an operation, the test has already been performed and you can continue with the next operation.

Operation 1: Checking Diagnostic Trouble Code (DTC) memory

Test conditions:
- Engine stopped, ignition switched on

- Connect vehicle diagnostic, testing and information system VAS 5051 and select vehicle system "01 - Engine electronics" in selection . Ignition must be switched on. Connecting VAS 5051/VAG 1551 Scan Tool (ST)

Display on VAS 5051:







- Under -1- select diagnostic function "02 - Check Diagnostic Trouble Code (DTC) memory".

Display on VAS 5051:







1 - Content of the Diagnostic Trouble Code (DTC) memory:
- 0 DTCs recognized
or
- X DTCs recognized
2 - DTCs
- DTC code
- DTC location
- DTC type

If a DTC is stored:
- Repair DTC and erase Diagnostic Trouble Code (DTC) memory. Perform a road test and check DTC memory again.

If no DTC is stored:
- Press <- button.
- Perform next operation.

Operation 2: Erasing Diagnostic Trouble Code (DTC) memory

Test conditions:
- Engine stopped, ignition switched on

Display on VAS 5051:







Under -1- select diagnostic function "05 - Erase Diagnostic Trouble
Code (DTC) memory".

NOTE: The readiness code is reset when the Diagnostic Trouble Code (DTC) memory is erased and must therefore be reproduced.

Display on VAS 5051:







1 - No display (before erasing)
or
- Diagnostic Trouble Code memory erased
2 - Note: Is the function to be carried out?
Note: Data will be erased.
- Press "OK" button in display -2-.
- Press <- button.
- Perform next operation.

Operation 3: Adapting the Throttle Valve Control Module -J338- to the Engine Control Module (ECM)

Test conditions:
- Engine stopped, ignition switched on

Display on VAS 5051:







- Under -1- select diagnostic function "04 - Basic setting".

Display on VAS 5051:







1 - Enter display group
- Enter "060" for "display group number 060" in field -2- and confirm entry by pressing -Q- button.

Display on VAS 5051:







- Activate basic setting by pressing -A- button.
- Check indication in display fields -3- and -4-.

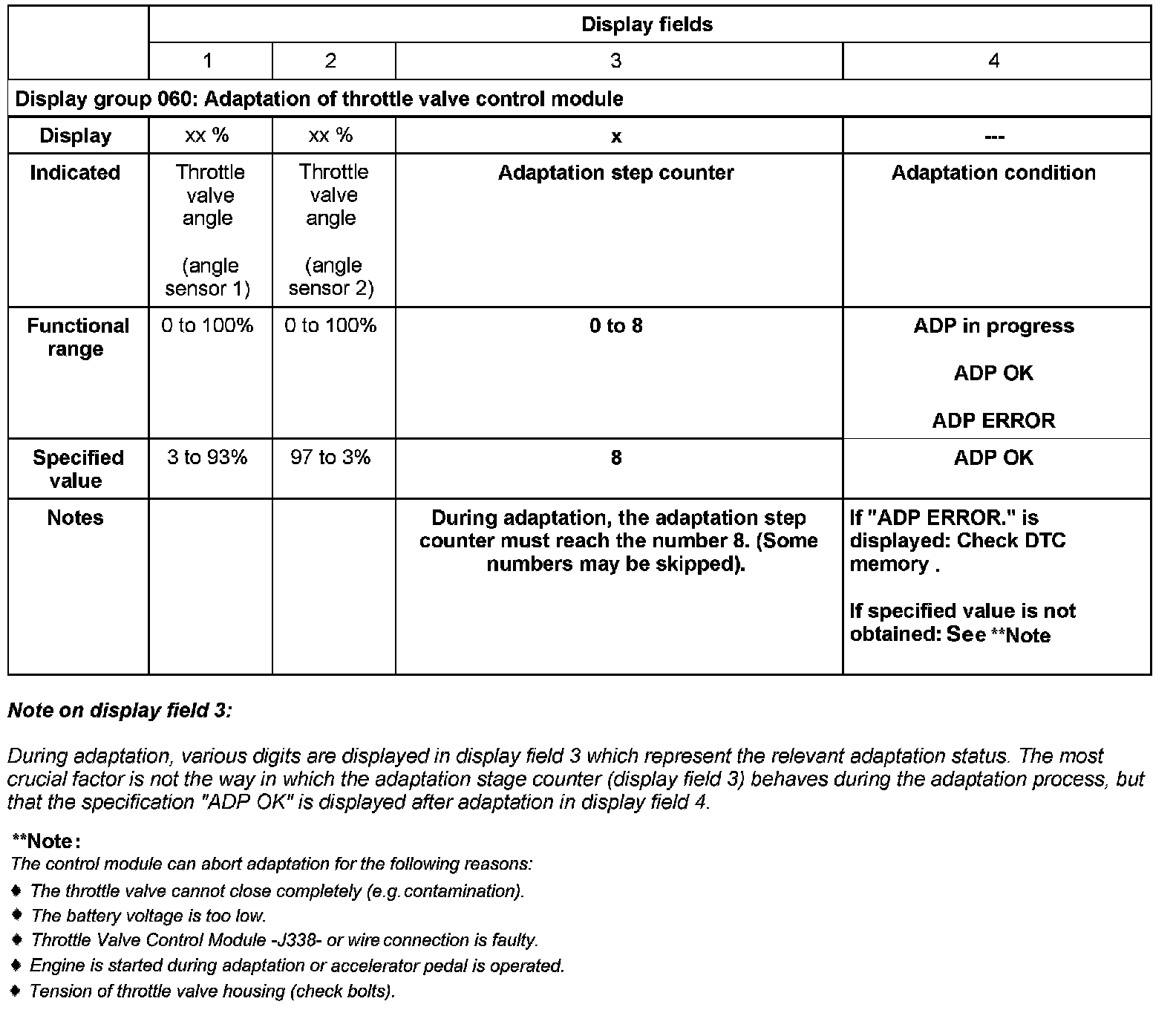

Display Group 060:






If specification "B1-P1 OK" is obtained:
- Press <- button and perform next operation.

Operation 4: Adapting kick-down function 1)

1) Only on vehicles with automatic transmission.

Test conditions
- Engine stopped, ignition switched on

Display on VAS 5051:







1 - Enter display group
- Enter "063" for "display group number 063" in field -2- and confirm entry by pressing -Q- button.

Display on VAS 5051:







- Activate basic setting by pressing -A- button.


NOTE: You will now be instructed to: "Operate kick down".

- Fully depress accelerator pedal beyond kick-down point and keep it pressed.

NOTE: During the kick-down point adaptation process, "Kick-down ADP is running" is shown on the display. After successful adaptation of the kick-down point "Kick-down ADP OK" appears on the display.

- Check indication in display field -4-.

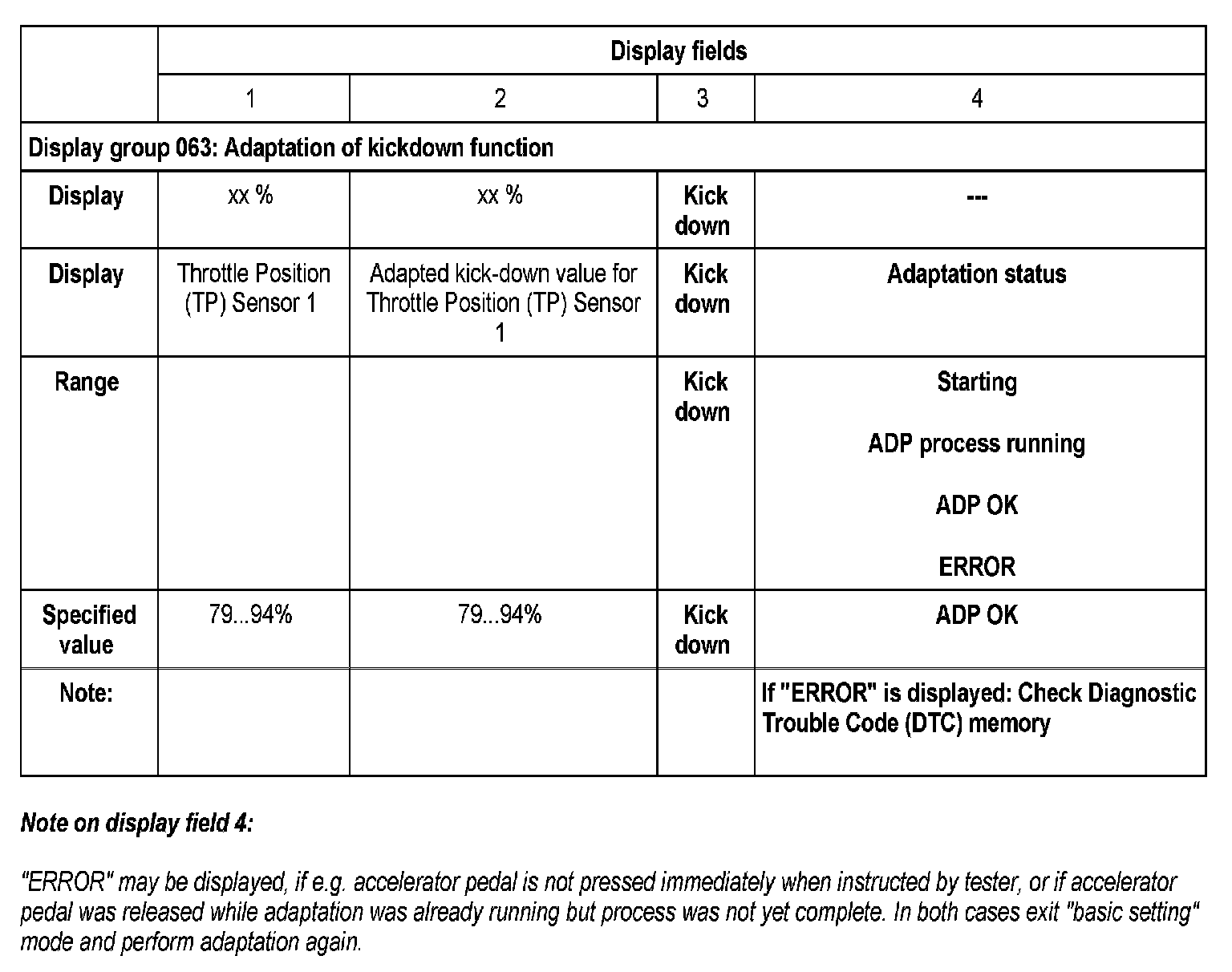

Display Group 063:






If specification "ADP OK" is obtained:
- Press <- button then perform next operation.

Operation 5: Checking operating status of oxygen sensor control

- Start engine (for vehicles with manual transmision: press clutch pedal).


NOTE: If necessary, after the engine starts reselect vehicle system "01 - Engine electronics" and diagnostic function "04 -Basic setting".

Test conditions:
- Engine at idle

Display on VAS 5051:







1 - Enter display group
- Enter "030" for "display group number 030" in field -2- and confirm entry by pressing -Q- button.

Display on VAS 5051:







- Activate basic setting by pressing -A- button.
- Check indication in display fields -1- and -2-.

NOTE:
- By increasing engine speed (RPM) the specified values are achieved quicker.
- The "Oxygen sensor status" indicates the condition of oxygen sensor control and the oxygen sensor (O2S).

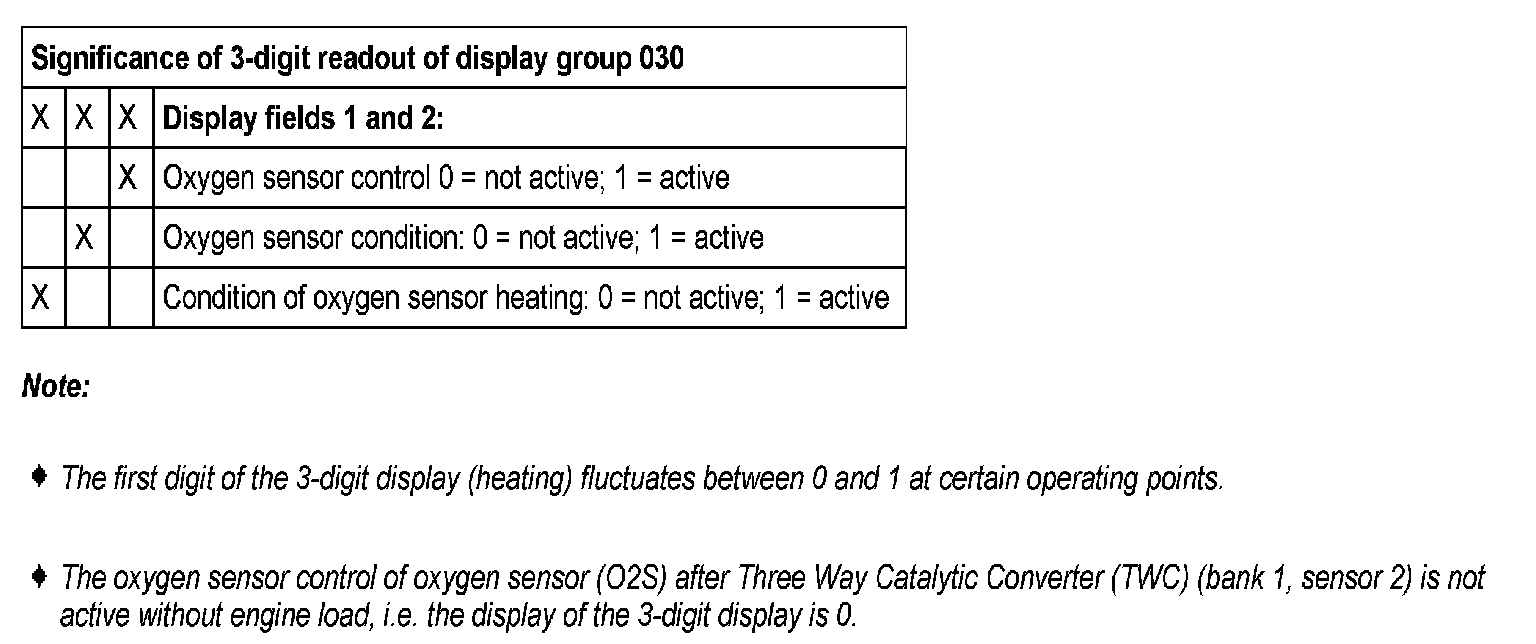

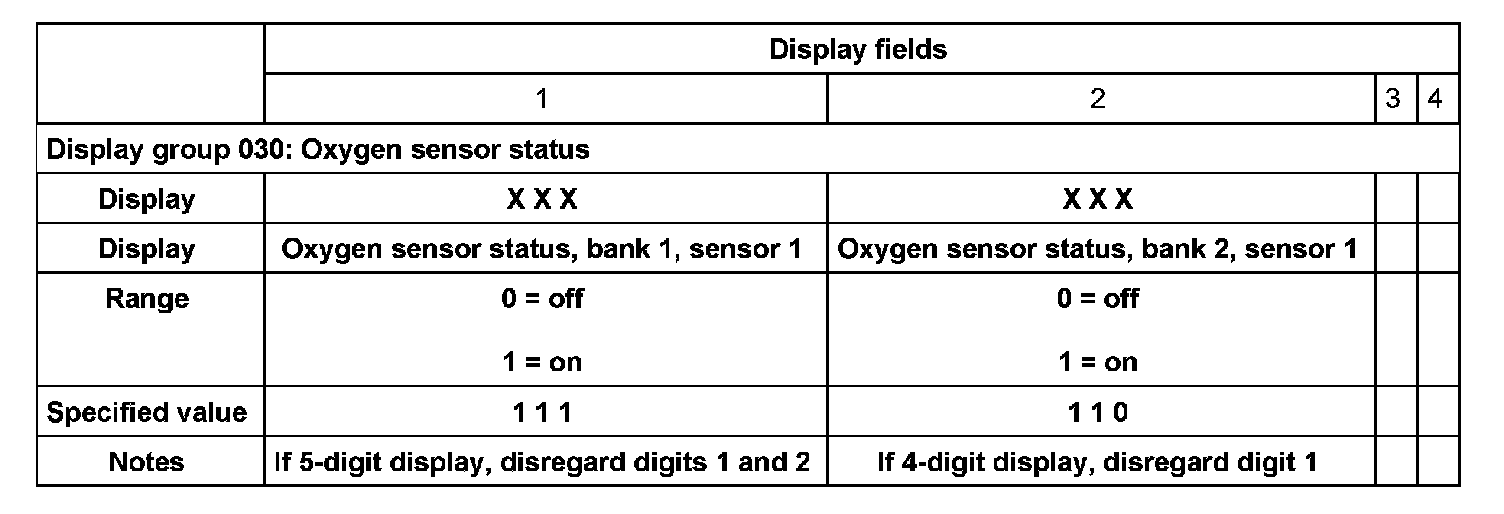

Display Group 030:









- Only continue with test if displays have reached "111" in display field 1 and "110" in display field 2 at least once.
- Press <- button.
- Perform next operation.

Operation 6: Diagnosis of oxygen sensor control system before Three Way Catalytic Converter (TWC)

Test conditions:

- Engine at idle

Display on VAS 5051:







1 - Enter display group
- Enter "107" for "display group number 107" in field -2- and confirm entry by pressing -Q- button.

Display on VAS 5051:







- Check indication in display field -4-.

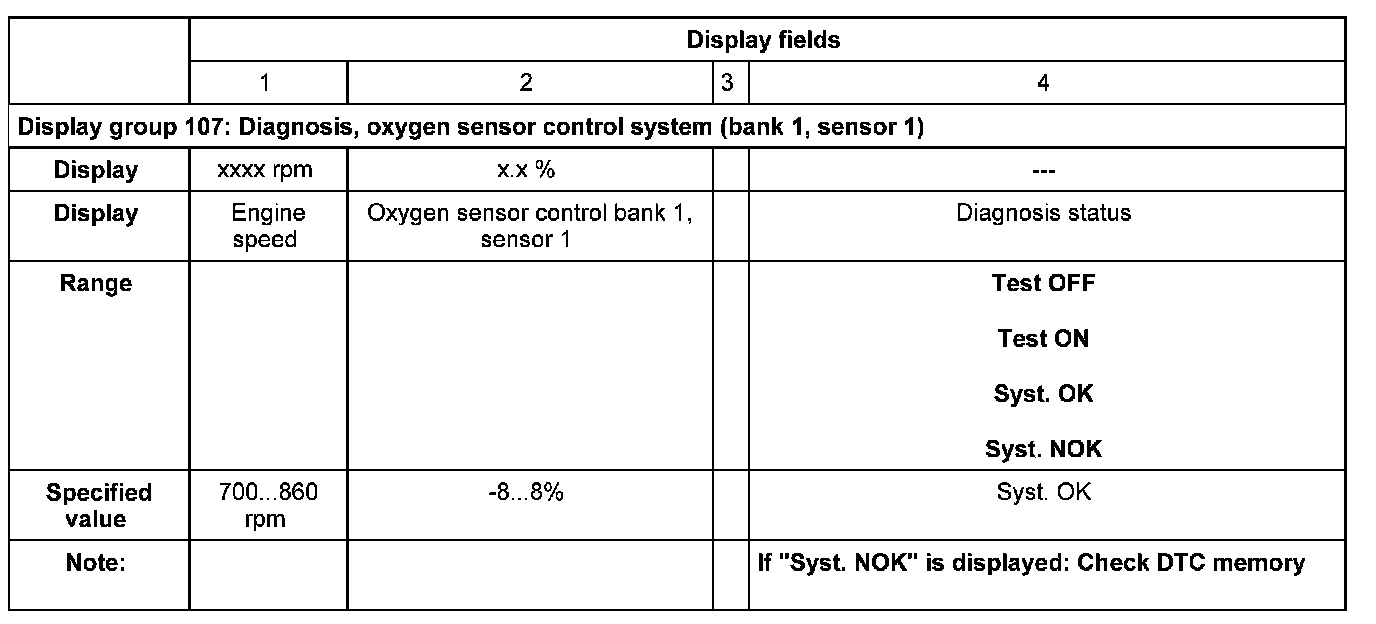

Display Group 107:






If specification "Syst. OK" is obtained:
- Press <- button.
- Abruptly floor accelerator pedal and release again (brief burst of throttle). 3000 rpm, then perform next operation

WARNING: The test procedure cannot continue successfully without this brief burst of throttle.
