Roadster

Removing And Installing Mid-range/bass Loudspeaker (broadband Speaker) In Rear Side Trim (Roadster)

Removing
- Remove rear panel side trim.

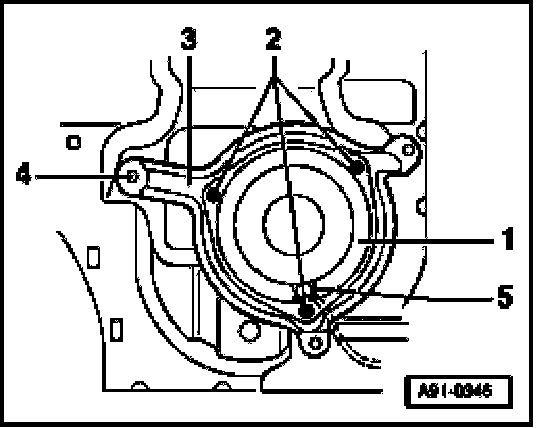

- Remove securing screws -2- (3 Nm) at speaker -1-.
- Disconnect electrical harness connector -5- and remove loudspeaker 1 - from bracket -3-.
- Bracket -3- is secured to rear wall via screws -4- (2 Nm).

Installing
- Loudspeaker -1- must be installed so that the electrical harness connector -5- is positioned as shown.
- Install in reverse order of removal.
