Coupe

Removing And Installing Mid-range/bass Loudspeaker (broadband Speaker) In Rear Side Trim (coupe)

Removing
- Remove rear side trim.

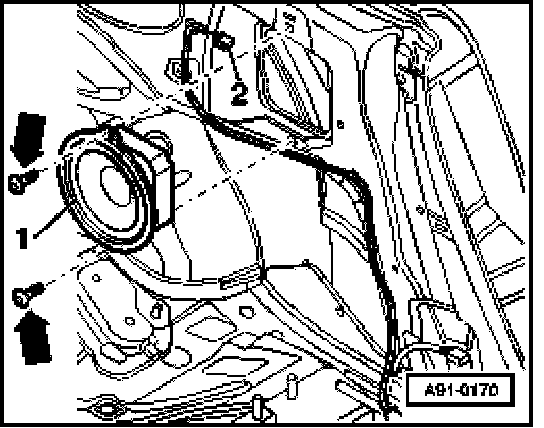

- Remove screws -arrows- securing loudspeaker -1-.
- Unplug electrical connector -2- and take loudspeaker out of its mounting.

Installing
- Install in reverse order of removal.

Driver's side Passenger-side
Tightening torque: 3.5 Nm 2 Nm
