Wiper Blade Park Position, Setting

Wiper Blade Park Position, Setting

- Operate wiper motor and allow it to return to park position.

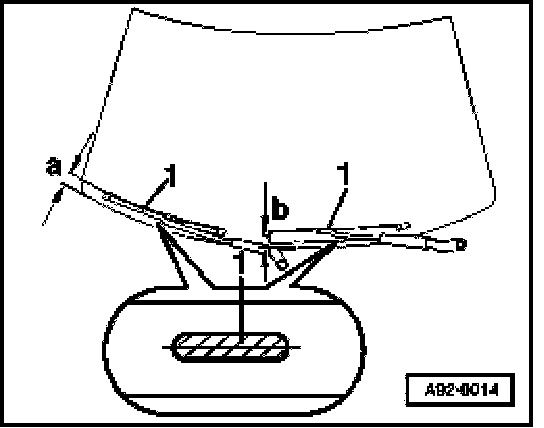

- Position wiper blades against marking -1- on windshield, align wipers and tighten nuts.

NOTE: When setting the wipers to park position, distances -a- and -b- must be as follows (minimum):

- a = 15 mm
- b = 15 mm
- Operate wipers (brief wipe function).
- If necessary, align wiper arms again and tighten securing nuts (16 Nm).

NOTE: The figures given here are the minimum distances between the ends of the wiper blades and the plenum cover at the bottom edge of the windshield.
