Wiper Arm: Adjustments

Wiper Arms, Adjusting

- Move wiper arms to park position.
- Remove wiper blade.

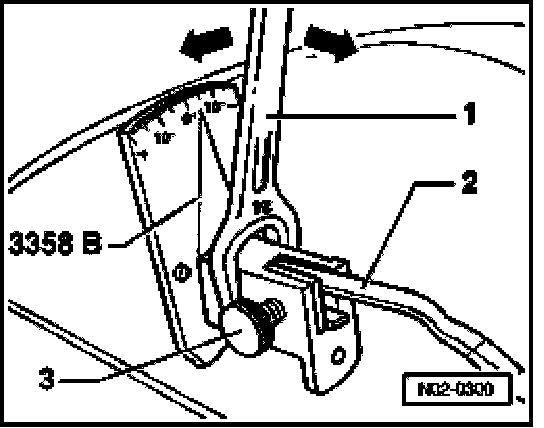

- Insert wiper arm -2- in wiper arm adjusting tool 3358 B and secure with locking screw -3-.
- Place open-end wrench -1- (24 mm A/F) over adjusting tool and adjust contact angle of wiper arm -2- (arrows) according to specifications
- Loosen locking screw -3- and remove wiper arm -2- from adjusting tool.
- Insert wiper arm -2- in wiper arm adjusting tool 3358 B again and secure with locking screw -3-.
- Compare indicated angle with specification.
- If necessary, repeat setting and checking procedure until angle is as specified.
- Remove adjusting tool and install wiper blade.
