Windshield Washer Reservoir: Service and Repair

Windshield Washer System

Washer fluid reservoir, removing and installing

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

NOTE: The washer fluid reservoir supplies washer fluid to both the windshield washers and headlight washer system.

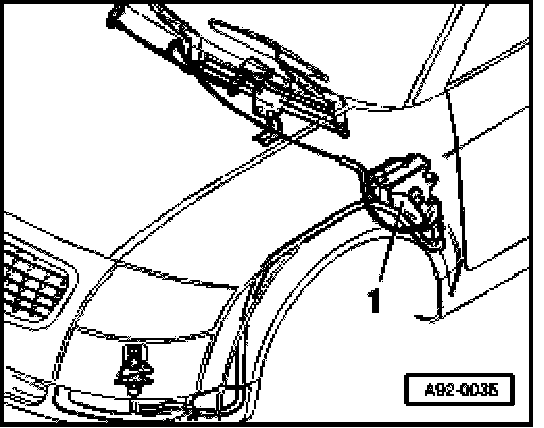

- The washer fluid reservoir -1 - is located below the left wheel housing liner and is secured to the fender and A-pillar.

Removing
- Remove front left wheel and wheel housing liner.

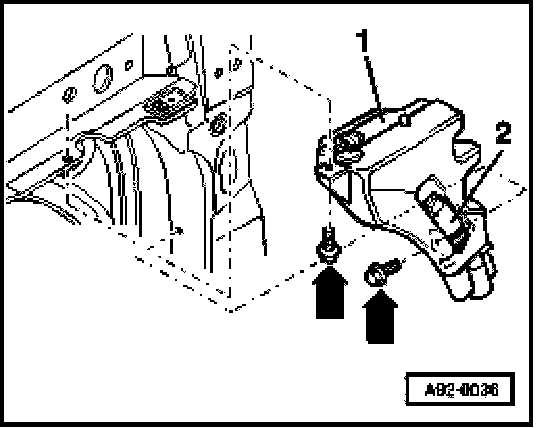

- Unscrew bolts -arrows-.
- Disconnect electrical connection and pull fluid hose from washer pump.
- Pull washer pump -2- out of fluid reservoir -1- and then remove fluid reservoir.

Installing
- Install in reverse order of removal.
