Headlamp Washer Spray Nozzle: Service and Repair

Headlight Washer Spray Jets, Removing And Installing

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

NOTE: The washer fluid reservoir supplies washer fluid to both the windshield washers and headlight washer system.

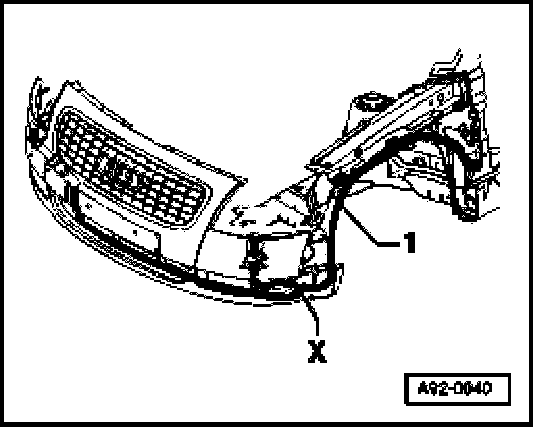

- The two headlight washer spray jets are supplied from the washer fluid reservoir via hose -1-.

Removing
- Remove bumper
- Disconnect washer fluid supply connection -X- at left spray jet (connection -X- is for both jets).

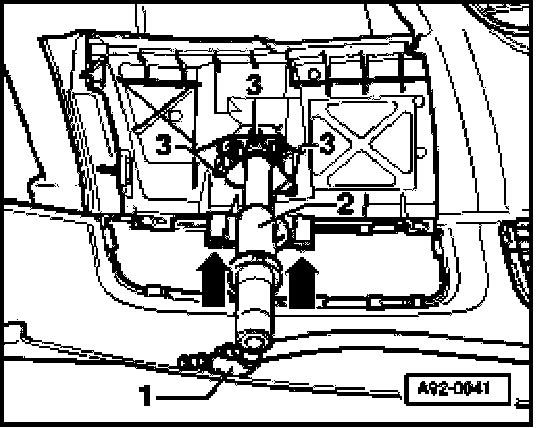

- Disconnect hose -1- from spray jet -2-.
- To remove spray jet, first remove bolts -3- from spray jet, then bolts arrows- on jet retainer.

Installing
- Install in reverse order of removal.
