Gear Shift and Gear Shift Housing, Servicing

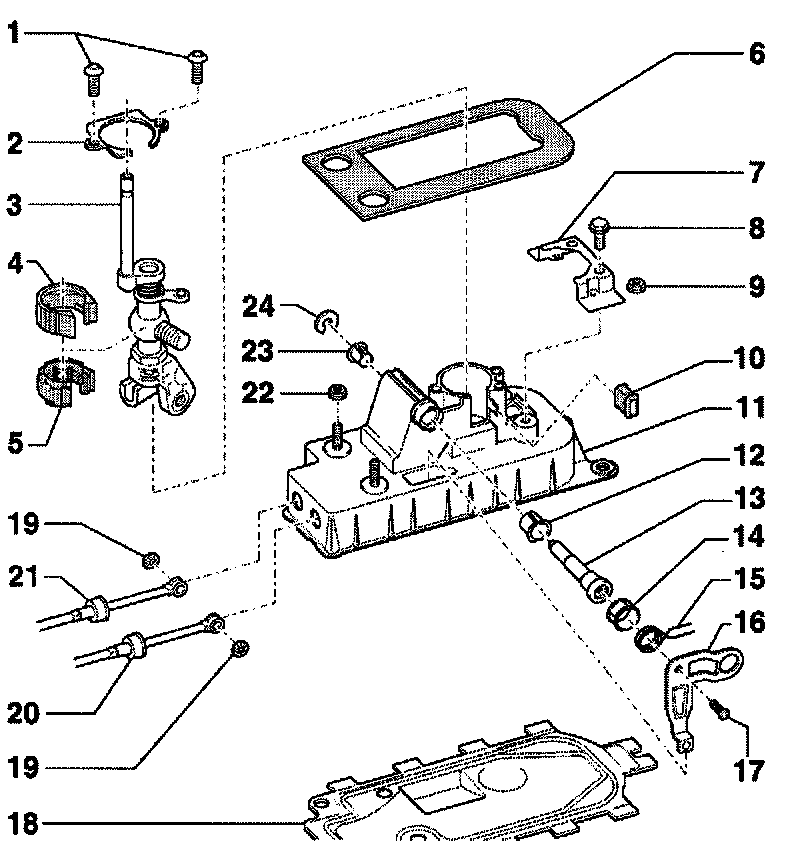

Gear shift and gear shift housing, servicing

Notes: Lubricate all bearings and moving surfaces Polyurea grease Part No. G 052 142 A2.
1. Torx bolt, 6 Nm
2. Cover plate
3. Gear shift
4. Damper
5. Bearing shell
^ Insert in damper (item 4)
^ Press onto gear shift (item 3) together with damper (item 4)
^ The open side of the bearing cage faces toward the gear shift housing
6. Gasket
^ Between gear shift housing and floor
^ Self - adhesive
^ Bond to gear shift housing
7. Bracket
^ Secured to body
8. Bolt, 25 Nm
9. Hexagon nut, 25 Nm
^ For bracket on body
10. Damper
^ Press onto gear shift housing
11. Gear shift housing
12. Bushing
^ Only kits in one position
13. Fulcrum pin
14. Guide bushing
^ Press onto gear shift housing
15. Spring
^ Installing
16. Gate selector bracket
17. Torx bolt, 6 Nm
18. Base plate
^ Bend up bracket to remove
^ Replace
19. Lock washer
20. Gate selector cable
21. Gear selector cable
22. Hexagon nut, 25 Nm
23. Bushing
^ Only fits in one position
24. Lock washer

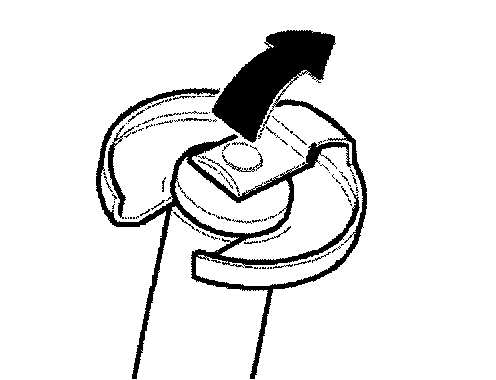

Fig. 1 Removing circlip for gate selector bracket
- Lift tab in direction of arrow.

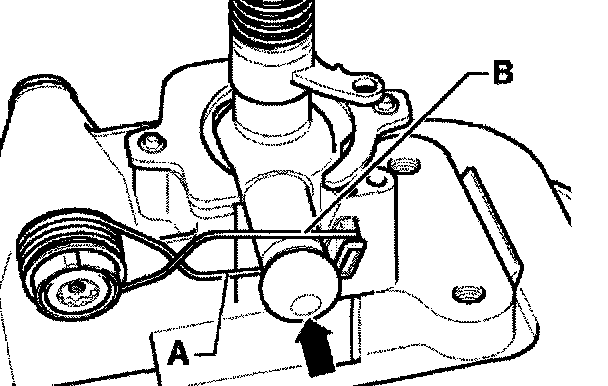

Fig. 2 Installing spring
- Insert spring so that arm - A - is below the pin (arrow).
- Then pull arm - B - up toward the gear shift so that it fits above the pin (arrow).
