Gear Selector Mechanism, Installation Position

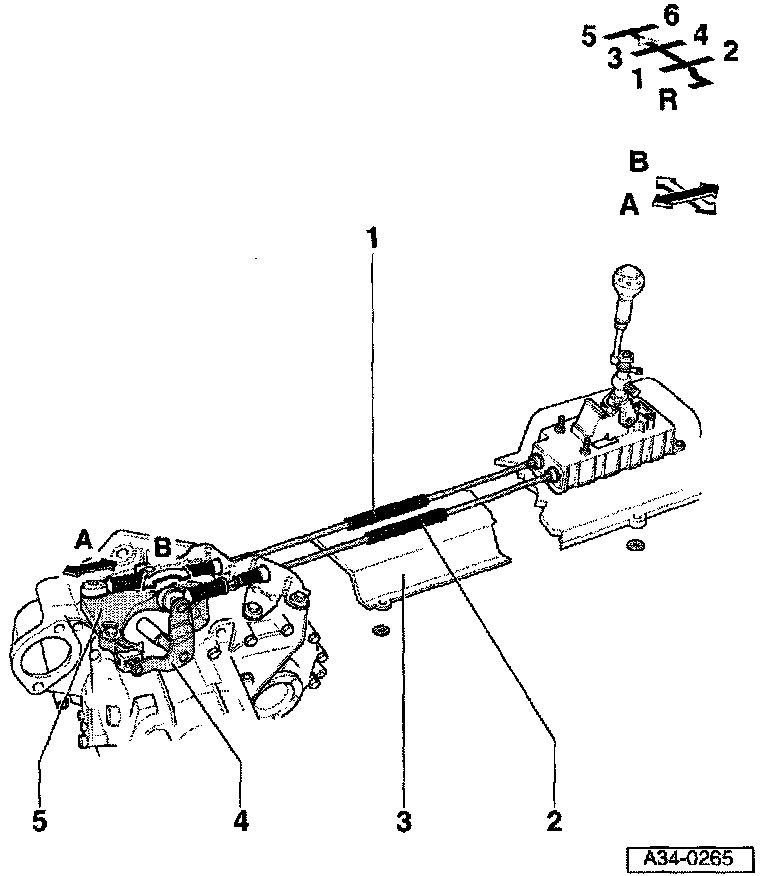

Gear selector mechanism, installation position
Arrow - A -: Gear selection movement
Arrow- B -: Gate selection movement

1. Gear selector cable
^ For gear selection movement - A
^ Gate selector cable
2. For gate selection movement - B
3. Heat shield
^ Remove before removing the gear selector mechanism
4. Relay lever
5. Gear selector lever (on transmission) with vibration damper weight

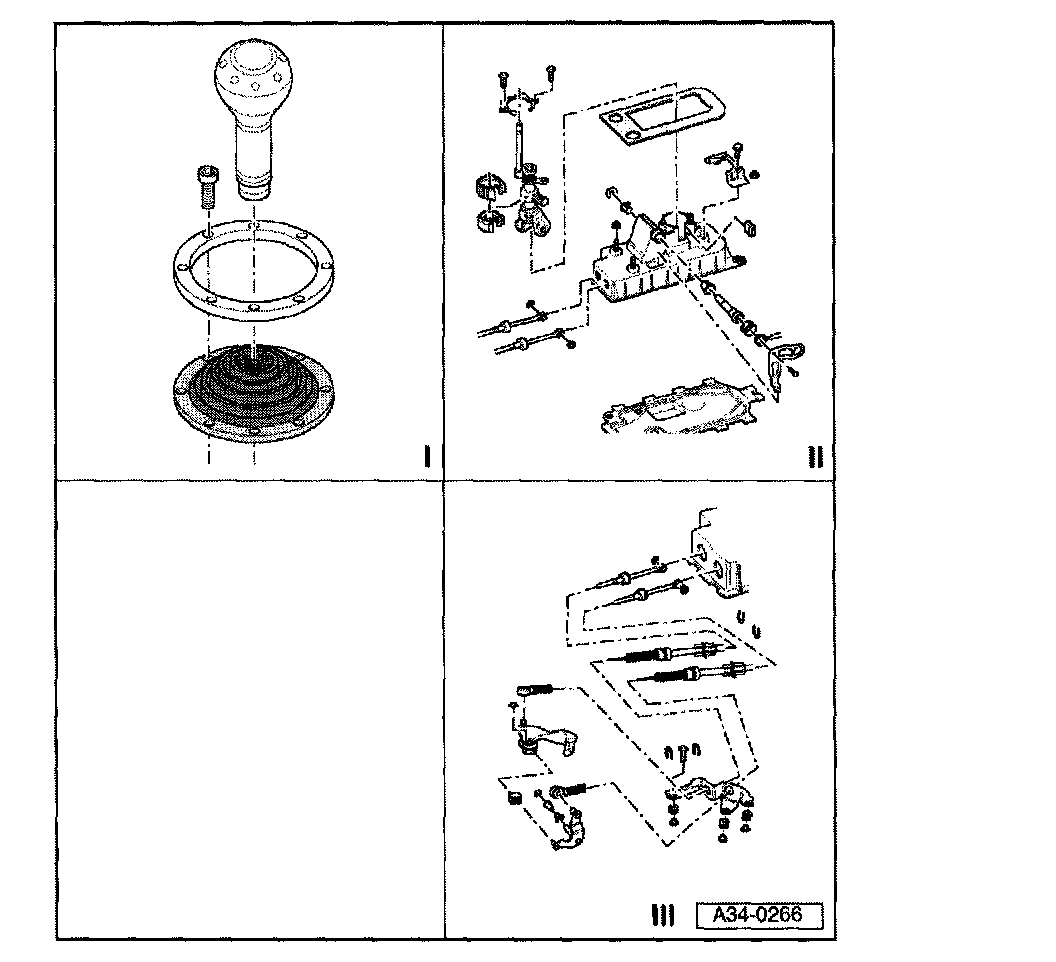

I - Removing and installing gear shift knob and cover, Refer to Shift Lever, MT, Service and Repair
II - Servicing gear shift and gear shift housing, Refer to Shift Lever, MT, Service and Repair
III - Assembly overview: Removing and installing operating cables, Refer to Shift Cable, MT, Service and Repair
Removing and installing selector mechanism, Refer to Shift Lever, MT, Service and Repair
Adjusting selector mechanism, Refer to Shift Lever, MT, Adjustments

Notes:
^ Before working on the selector mechanism, disconnect Ground strap from the battery in the engine compartment.
^ Note radio code on vehicles with coded radio.
