Gear Stick, Servicing

Gear stick, servicing

Notes: Lubricate all mountings and moving surfaces with Polyurea grease Part No. G 052 142 A2.

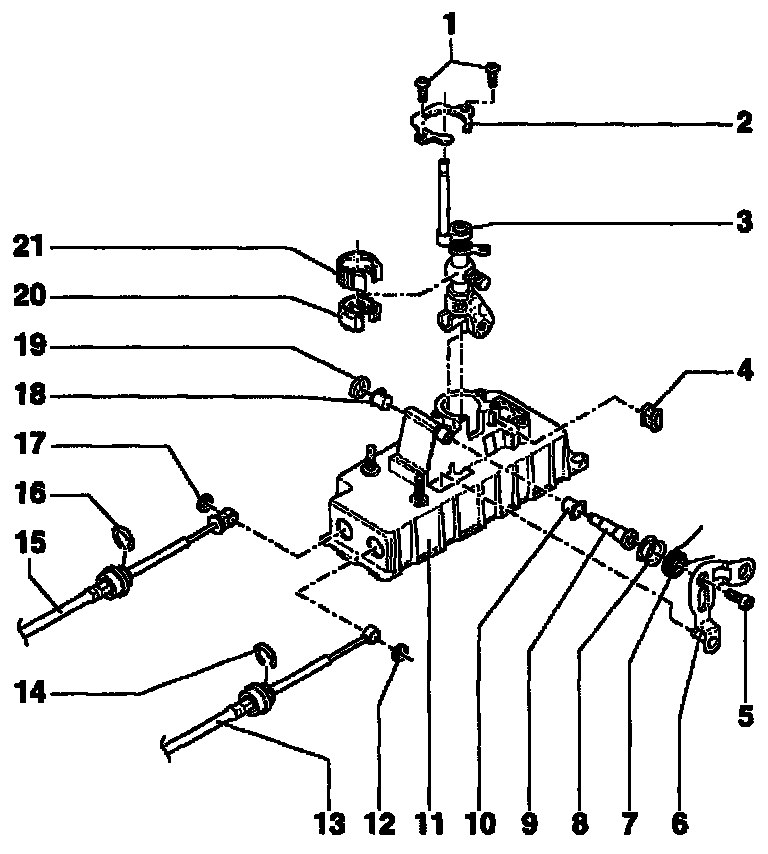

1. Torx socket head bolt, 6 Nm
2. Cover plate
3. Gear stick
4. Damper
^ Press onto gear stick housing
5. Torx socket head bolt, 6 Nm
6. Gate selector bracket
7. Spring
^ Installing
8. Guide bushing
^ Press onto gear stick housing
9. Fulcrum pin
10. Bushing
^ Only fits in one position
11. Gear stick housing
12. Circlip
^ Always replace
13. Gate selector cable
^ On gate selector bracket
14. Circlip
15. Gear selector cable
^ On gear lever
16. Circlip
17. Circlip
^ Always replace
18. Bushing
^ Only fits in one position
19. Circlip
^ Removing - Fig. 1
20. Bearing shell
^ Insert in damper (Item 21)
^ Press onto gear stick (Item 3) together with damper (Item 21)

^ The open side of the bearing cage faces toward the gear stick housing
21. Damper

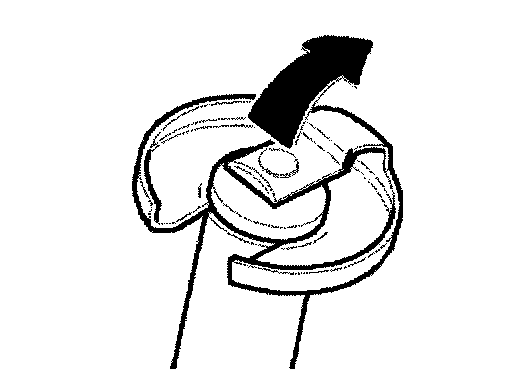

Fig. 1 Removing circlip for gate selector bracket
- Lift tab in direction of arrow.

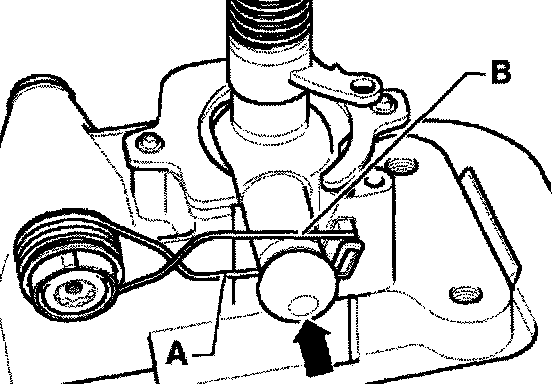

Fig. 2 Installing spring
- Insert spring so that arm - A - is under the stud (arrow).
- Pull arm - B - up toward the gear stick and leave it resting on top of the stud (arrow).
