Gear Stick Housing, Servicing

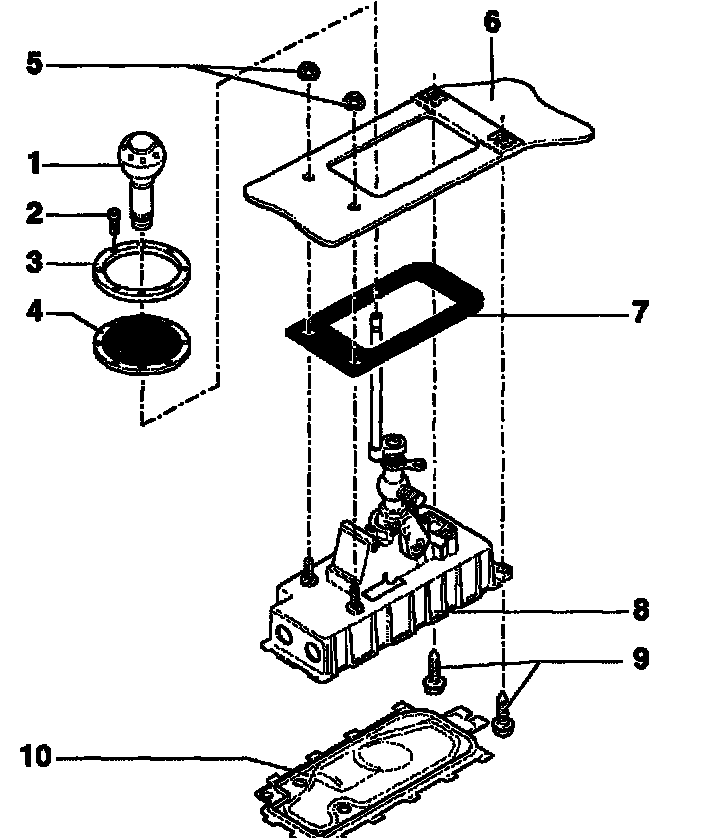

Gear stick housing, servicing
1. Gear stick knob
^ Unscrew to remove
2. Bolt
3. Retainer ring
4. Boot (gaiter)
5. Hexagon nut, 25 Nm
6. Floor plate
7. Gasket
^ Between gear stick housing and floor
^ Self - adhesive
^ Bond to gear stick housing
8. Gear stick housing
9. Hexagon combi - bolt, 25 Nm
10. Cover plate
^ With gasket
^ To remove, bend open the tabs
