Gear Selector Mechanism, Installation Position

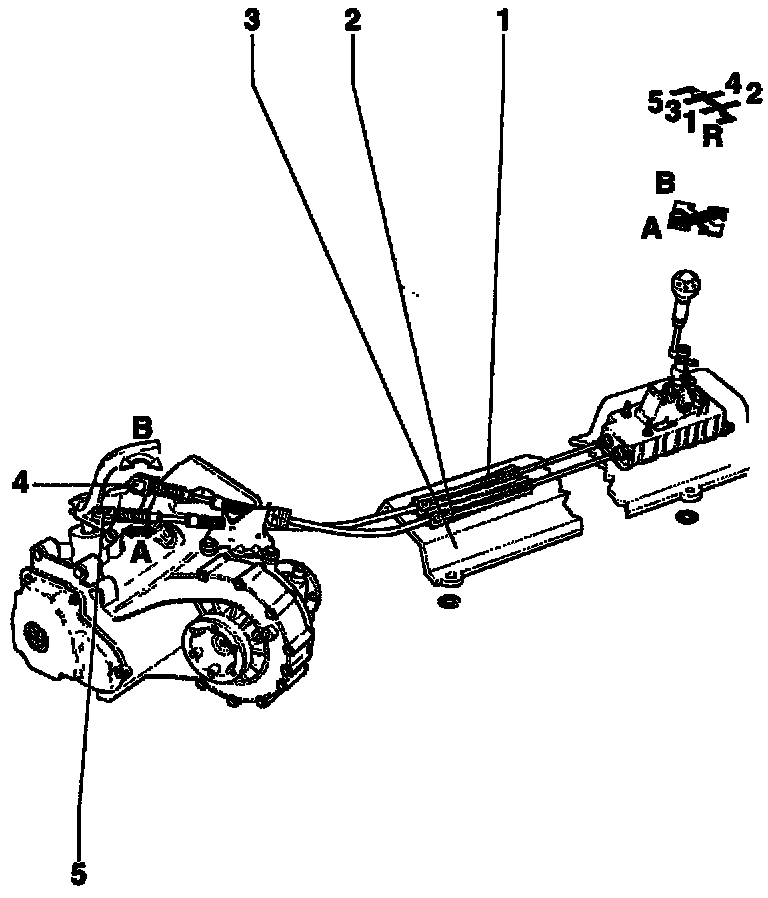

Gear selector mechanism, installation position
Arrow - A - Gear selection movement
Arrow - B - Gate selection movement

1. Gear selector cable
^ For gear selection movement - A -
2. Gate selector cable
^ For gate selection movement - B -
3. Heat shield
^ Remove heat shield before removing gear selector mechanism
4. Relay lever
5. Gear selector lever (on transmission) with vibration damper weight

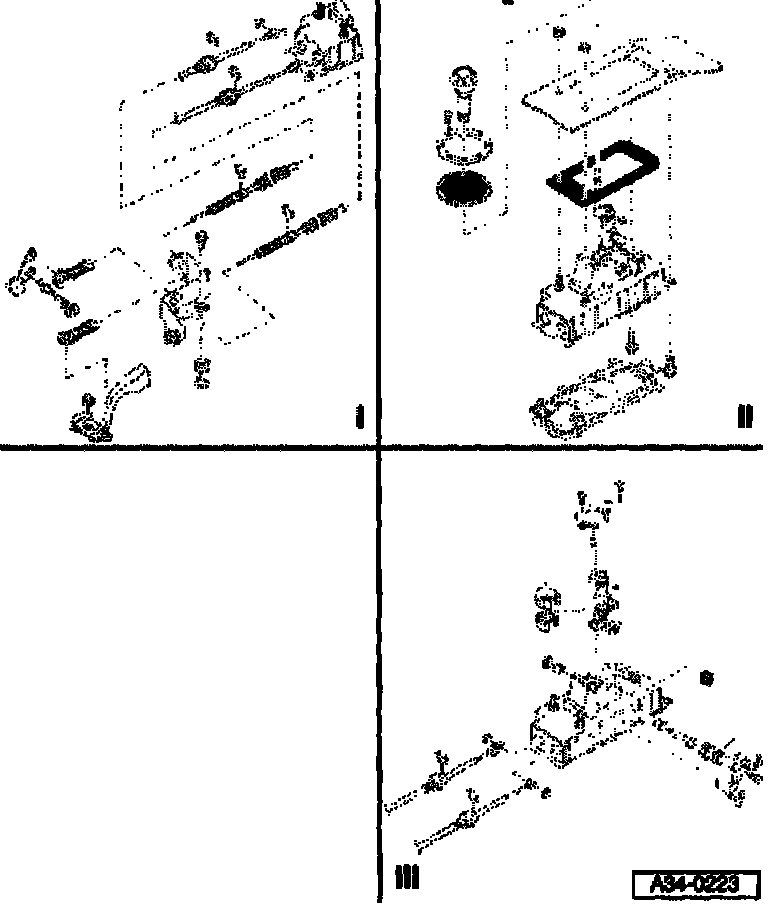

I - Assembly overview: removing and installing selector cables, Refer to Shift Cable, MT, Service and Repair
II - Servicing gear stick housing, Refer to Shift Cable, MT, Service and Repair
III - Servicing gear stick, Refer to Shift Cable, MT, Service and Repair
Removing and installing selector mechanism, Refer to Shift Cable, MT, Service and Repair
Adjusting selector mechanism, Refer to Shift Cable, MT, Adjustments
Notes:
^ Before working on the selector mechanism, disconnect Ground strap from the battery in the engine compartment.
^ Note radio code on vehicles with coded radio.
