02M 5/6 Speed Manual AWD

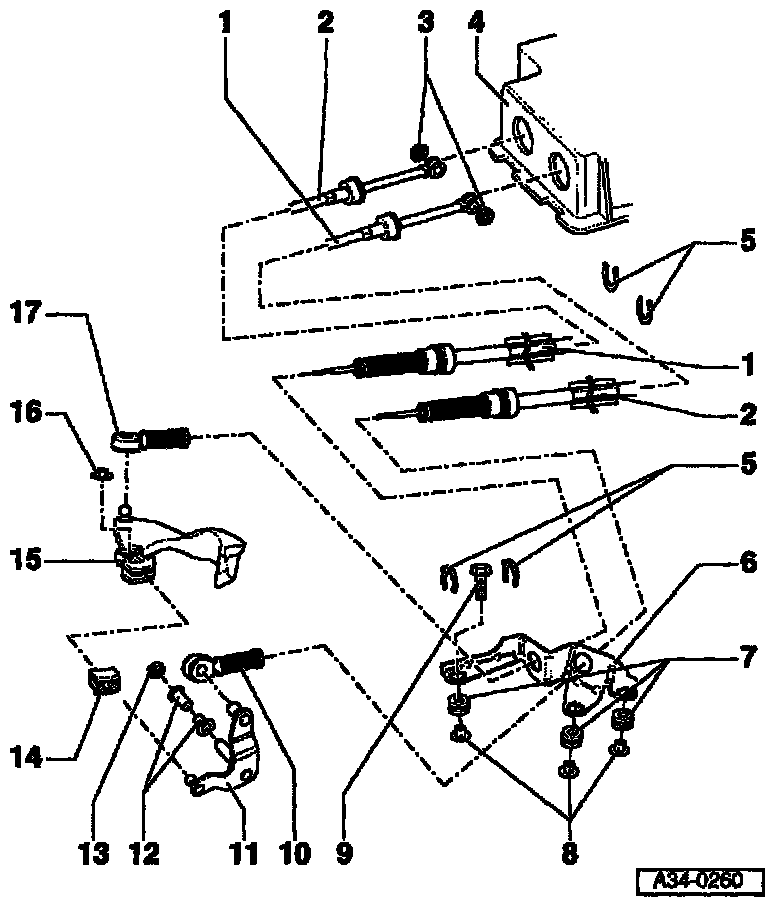

Selector cables, removing, installing and assembly overview

Notes: Lubricate all bearings and moving surfaces with Polyurea grease Part No. G 052 142 A2.

1. Selector Bowden control
^ On gate selector bracket
2. Shift Bowden control
3. Circlip
4. Gear shift housing
5. Circlip
^ Do not damage cable when removing
6. Support bracket
7. Bushing
^ Support bracket mounting to transmission
8. Distance piece
9. Hexagon bolt, 25 Nm
^ For support bracket
10. Cable locking mechanism
11. Relay lever
^ Installation position, Refer to Fig. 1
12. Bushing
13. Retaining washer
14. Shoe
15. Transmission selector lever
16. Hexagon nut, 25 Nm
17. Cable locking mechanism
^ For selector bowden cable to shift lever
^ Replace item 15 after prying off from transmission shift lever.
^ Unlatch for adjusting shift control mechanism

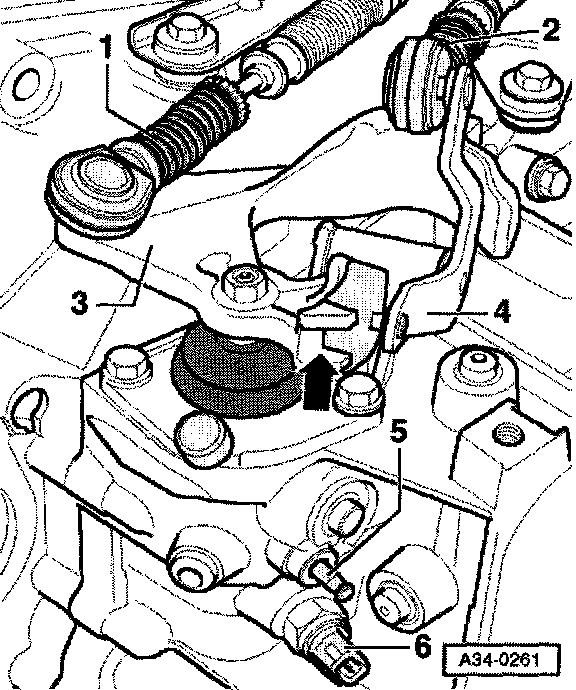

Fig. 1 Installation positions of gear selector lever, relay lever and adjuster pin





1. Retainer for gear selector cable
2. Retainer for gate selector cable
3. Gear selector lever with vibration damper weight
4. Relay lever
^ Locates in guide rail of selector lever (arrow - A -) via sliding block
^ Lubricate with MoS2 grease
5. Adjuster pin
^ To adjust selector mechanism, press adjuster pin into transmission
6. Reverse light switch
