02J 5-Speed Manual FWD

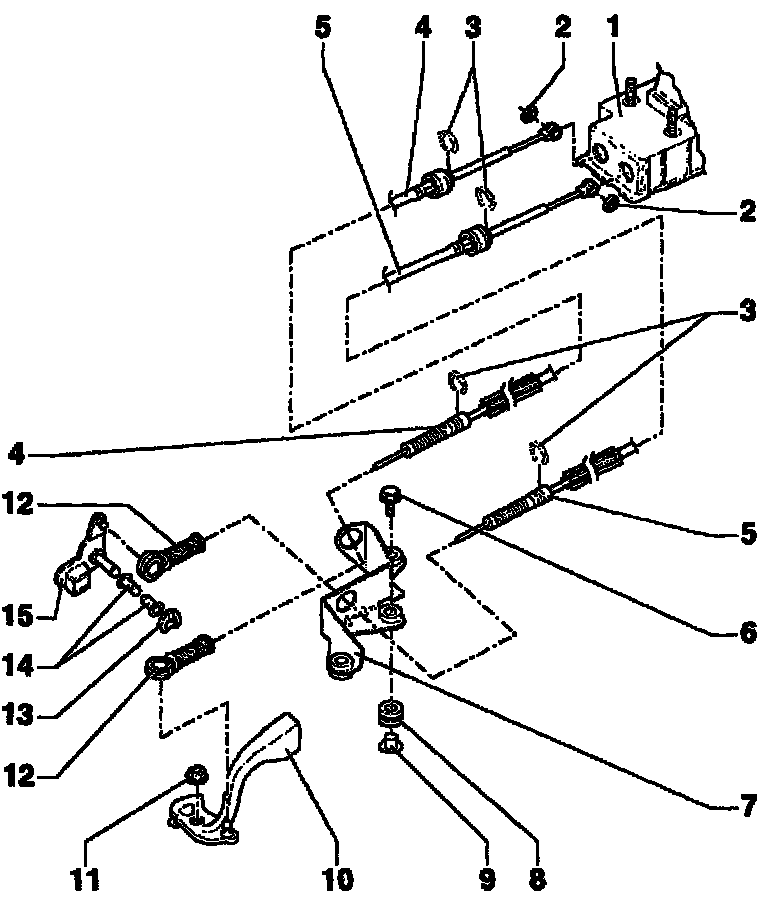

Selector cables, overview, removing and installing





Notes: Lubricate all mountings and moving surfaces with Polyurea grease Part No. G 052 142 A2.

1. Gear stick housing
2. Circlip
3. Circlip
^ When removing do not damage boots
4. Gear selector cable
5. Gate selector cable
6. Hexagon bolt, 25 Nm
^ For support bracket
7. Support bracket
8. Bushing
^ Support bracket mounting to transmission
9. Distance piece
10. Gear selector lever (on transmission) with vibration damper weight
^ Only fits in one position
^ Installation position
11. Self - locking hexagon nut, 25 Nm
^ For gear selector lever
12. Selector cable retainer
13. Circlip
^ Removing, Refer to Fig. 2
14. Bushing
15. Relay lever

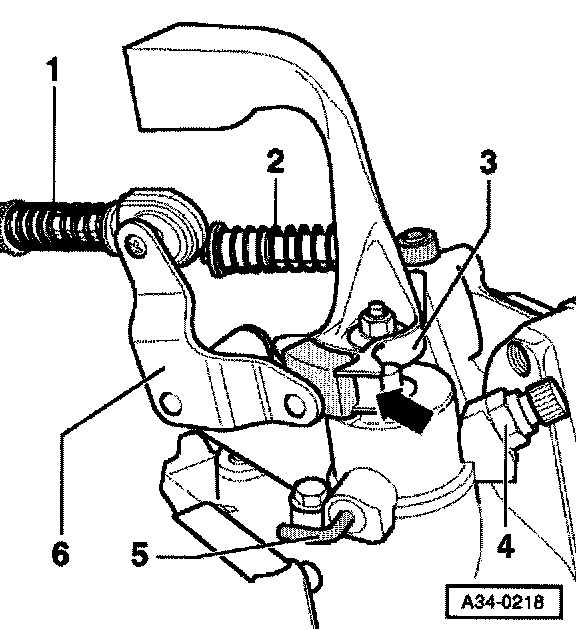

Fig. 1 Installation positions of gear selector lever, relay lever and adjuster pin
1. Retainer for gate selector cable
2. Retainer for gear selector cable
3. Gear selector lever with vibration damper weight
4. Reverse light switch
5. Adjuster pin
To adjust selector mechanism, turn pin so that it points vertically upward.
6. Relay lever
Locates in guide rail of gear shift lever (arrow) via sliding block
Lubricate with MoS2 grease

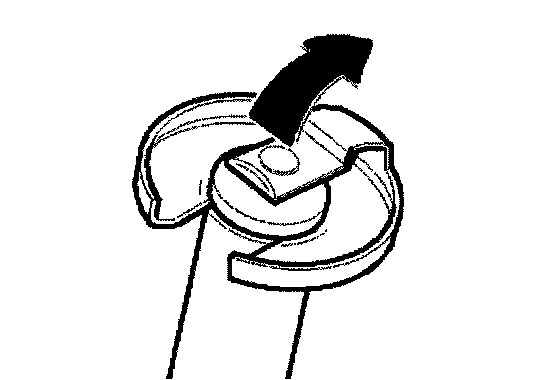

Fig. 2 Removing circlip for gate selector bracket and selector lever guide/gate selector housing.
- Lift tab in direction of arrow.
