Input Shaft, Pinion Shafts, Differential, Angled Transmission

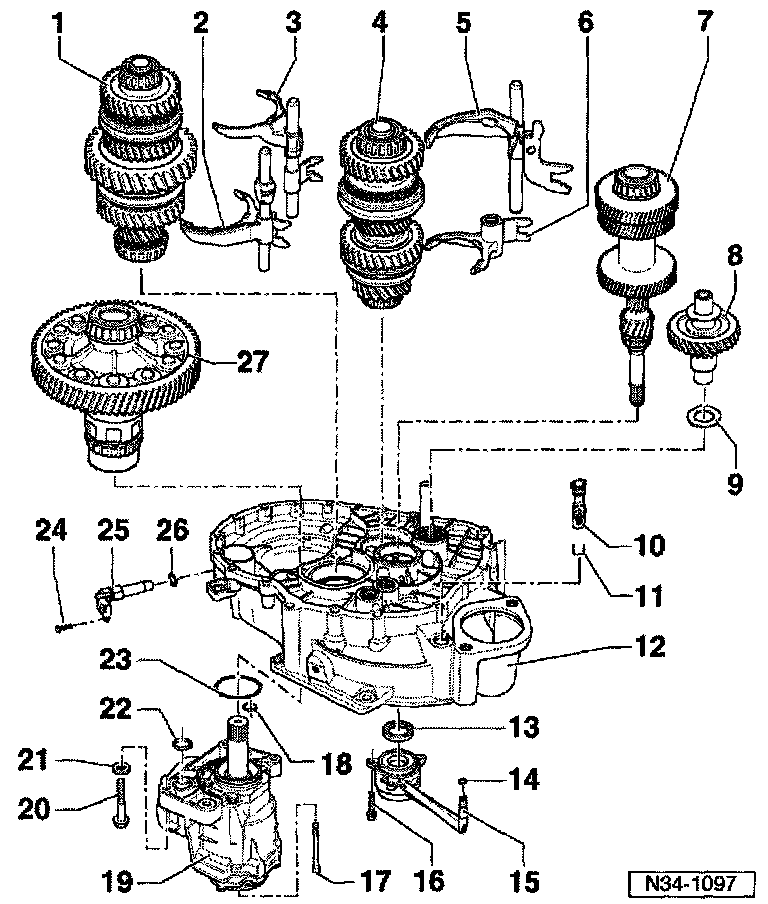

Input shaft, pinion shafts, differential, angled transmission and shift rods, removing and installing





1. Input shaft 1st to 4th gear
^ Installation position - Fig 1
2. Selector shaft with shift fork for 1st and 2nd gear
^ Installation position - Fig 2
3. Selector shaft with shift fork for 3rd and 4th gear
^ Installation position - Fig. 2
4. Pinion shaft 5th/6th and reverse gear
5. Selector shaft with shift fork for 5th and 6th gear
^ Installation position - Fig 2
6. Shift fork reverse gear
^ Installation position - Fig. 2
7. Input shaft
8. Reverse shaft
9. Thrust plate
10. Vent
^ Connect with slave cylinder - 15 -
11. Clip
12. Clutch housing
13. Sealing washer for input shaft
14. O-ring
^ Replace
15. Slave cylinder with release bearing
16. Hex head bolt, 13 Nm
^ 3 pieces
17. Cone head bolt, 25 Nm
18. O-ring
^ Always replace
19. Angled transmission
^ Disassembling and assembling

20. Bolt, 40 Nm - 450 Nm
21. Washer
22. O-ring
^ Always replace
23. O-ring
^ Always replace
24. Hex head bolt, 12 Nm
25. Speed sensor
26. O-ring
^ Always replace
27. Differential

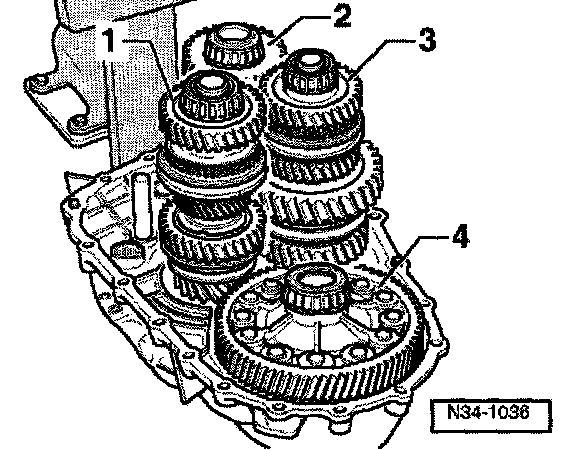

Fig. 1 Installation position of pinion shafts in transmission:





Fig. 2 Installation position of complete shift mechanism in transmission:
1. pinion shaft 5th/6th and R gear
2. input shaft
3. pinion shaft 1st to 4th gear
4. differential
1. shift fork 3rd and 4th gear
2. shift fork 1st and 2nd gear
3. shift fork reverse gear
4. shift fork 5th and 6th gear
5. selector shaft

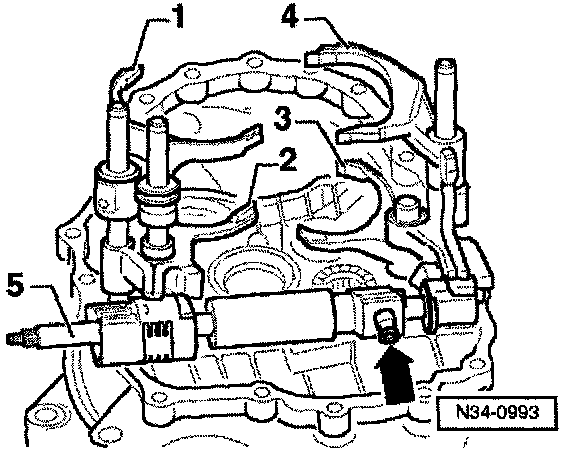

The lower bearing of the selector shaft - arrow - is bolted to the cover at transmission housing.
