Input Shaft, Output Shaft, Differential and Selector Forks

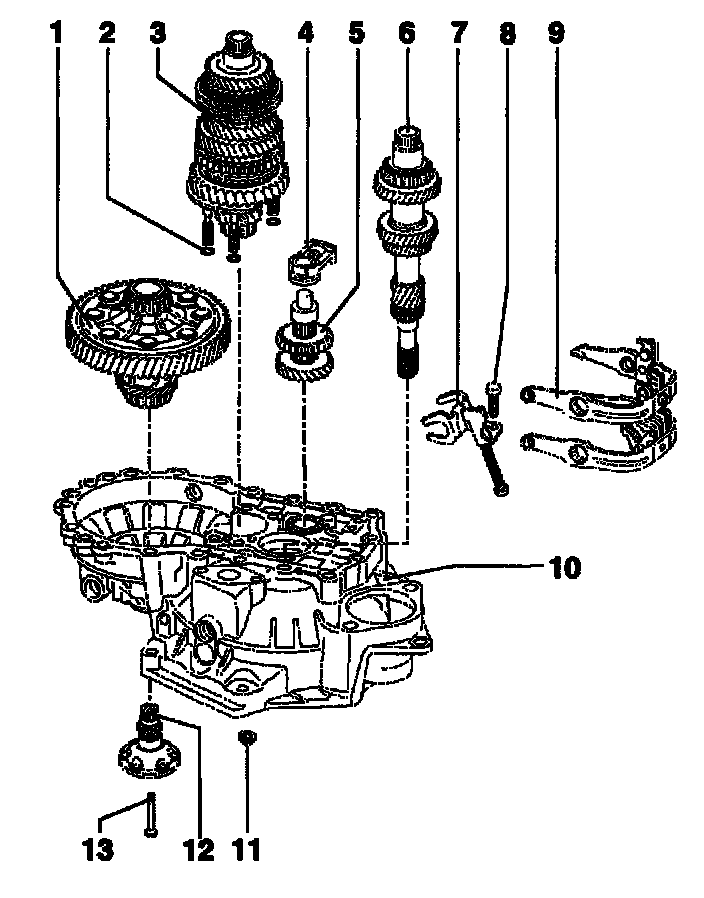

Input shaft, output shaft (pinion shaft), differential and selector forks, removing and installing
1. Differential
2. Sealing ring
^ Qty. 4
^ Always replace
3. Output shaft
^ Disassembling and assembling
4. Reverse shaft support
5. Reverse shaft
6. Input shaft
7. Reverse gear selector fork
8. Torx socket head bolt, 25 Nm
9. Selector mechanism
10. Clutch housing
11. Hexagon nut, 25 Nm and then turn 90° further
^ 4 nuts for bearing support
12. Drive flange with spring
13. Cone head bolt, 25 Nm
