O - Ring For Rear Axle Cover (Final Drive Installed).

O- ring for rear axle cover (final drive installed), replacing
Removing





- Drain gear oil.
- Remove left or right drive flange.

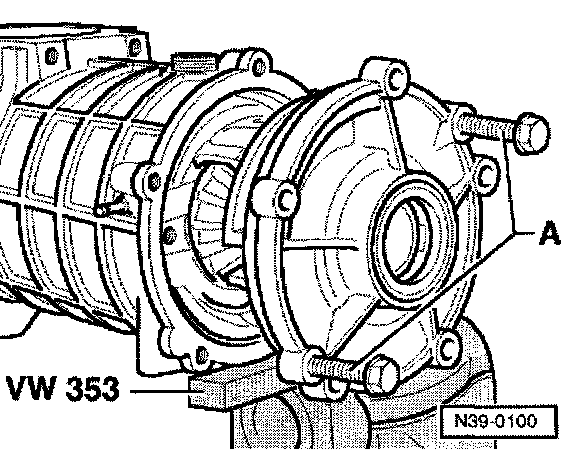

- Remove right - hand cover or left - hand cover, when doing this screw bolts -A - in evenly so that the cover does not cant.





- Remove right - hand cover together with differential.

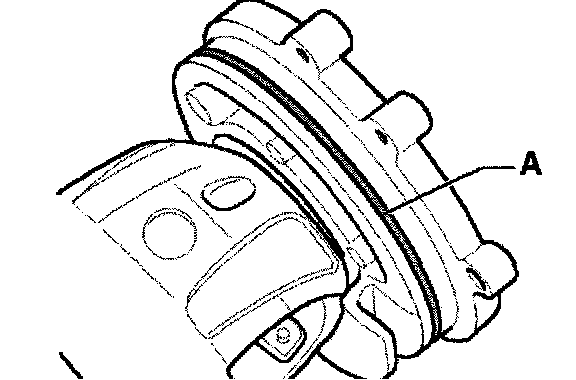

- Then remove the O - ring - A -.

Installing





Installation is carried out in the reverse sequence, when doing this note the following:

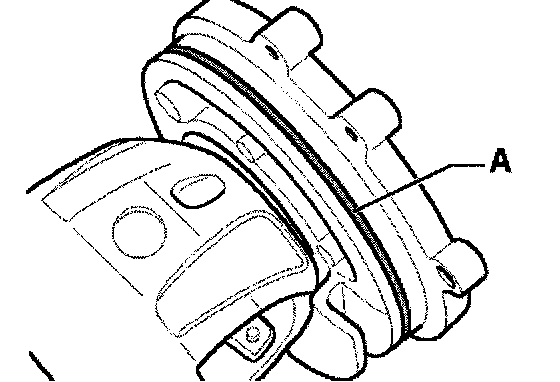

- Lubricate O-ring - A - with gear oil and install.
- Top up oil to lower edge of filler hole.
- Checking gear oil in rear final drive.

Tightening torque
Cover to rear axle housing tightening torque: 25 Nm
