Fluid - Differential: Testing and Inspection

Rear final drive oil, checking

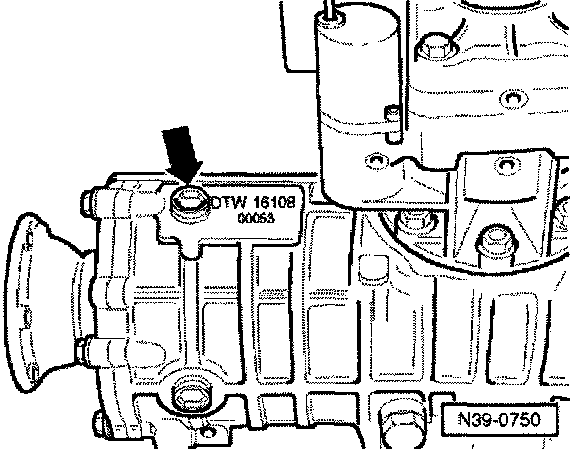

- To check oil level, unscrew oil filler plug (arrow).
- Specification: oil level up to lower edge of filler hole
- Top up gear oil if necessary.
- Specification, Refer to Differential Assembly, Application and ID.
- Fit oil filler plug.

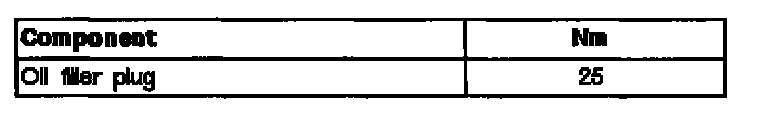

Tightening torque
