Code Letters Ratios, Capacities - Rear Final Drive

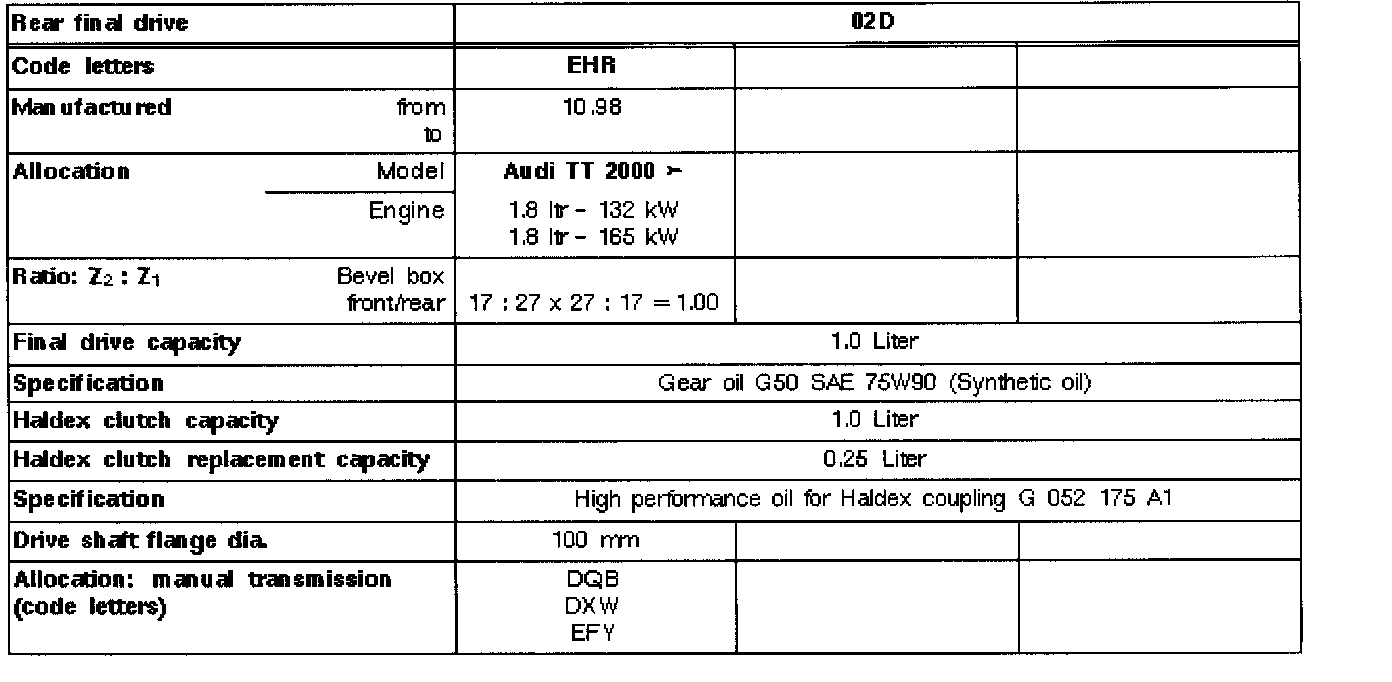

Code letters, assembly allocation, ratios, capacities - rear final drive

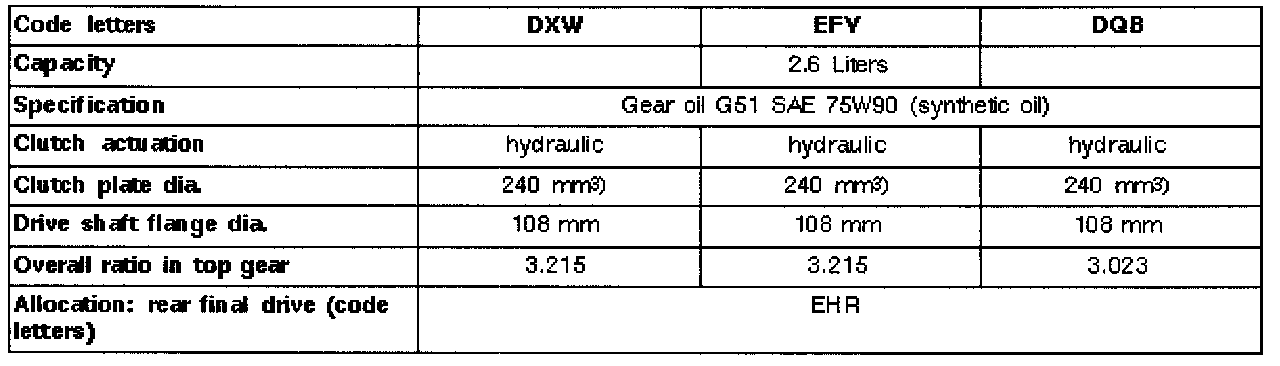

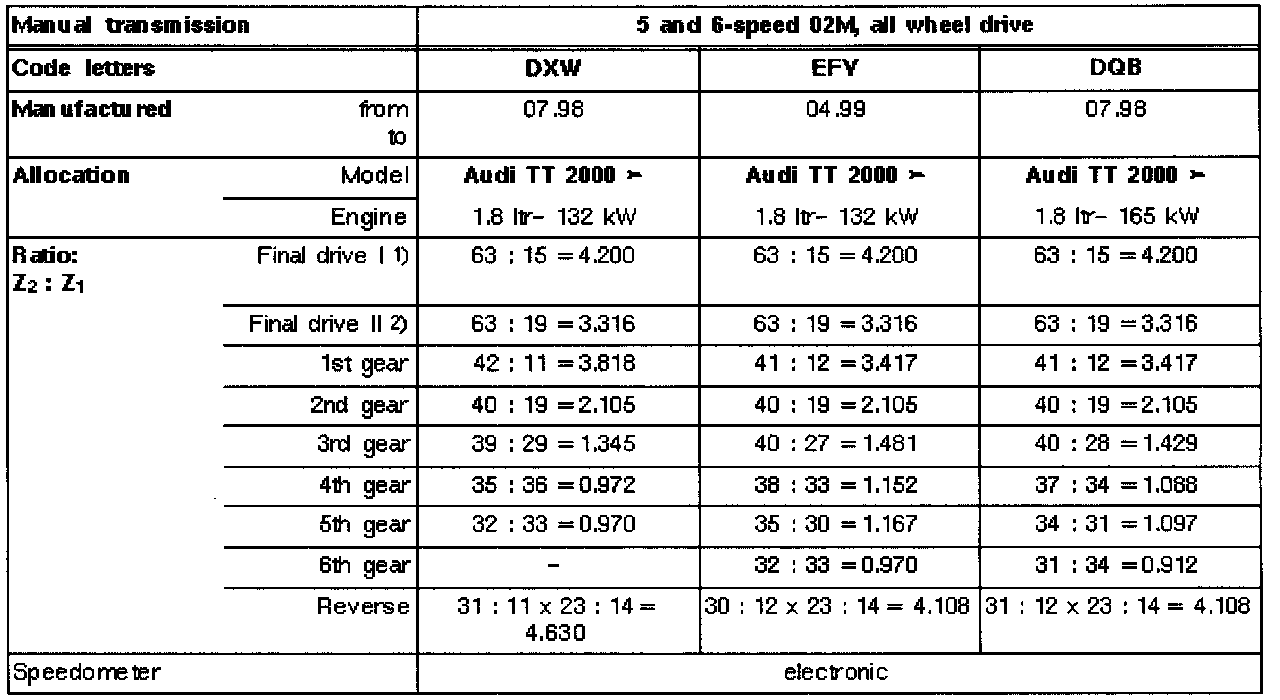

Code letters, assembly allocation, ratios, capacities - manual transmission
1) Final drive for 1. to 4. gear
2) Final drive for 5./6. and reverse gear





3) With dual - mass flywheel
