Clutch Pedal Assembly: Service and Repair

Clutch pedal, removing and installing





Special tools and workshop equipment required

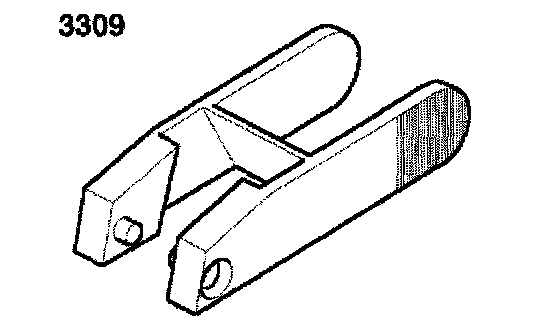

^ 3309 Release tool

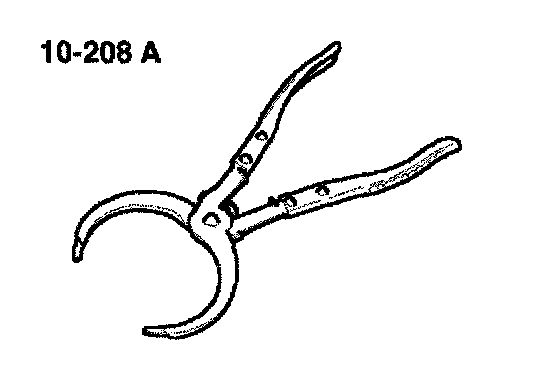

^ 10 208 A Pliers

Removing





- Removing over - center spring.
- Separate clutch pedal from master cylinder and push operating rod toward engine compartment onto stop.

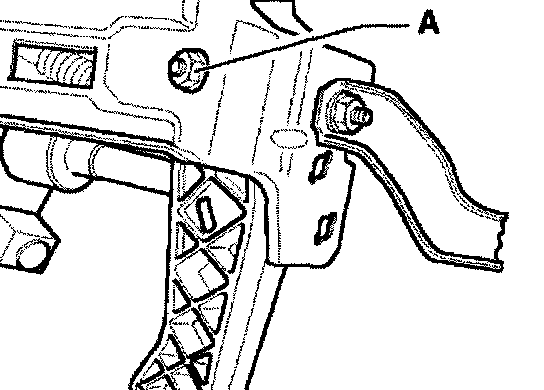

- Remove nut - A -.
- Pull bolt out until the clutch pedal can be removed.

Installing
Installation is carried out in the reverse sequence, when doing this note the following:





- Removing over - center spring.

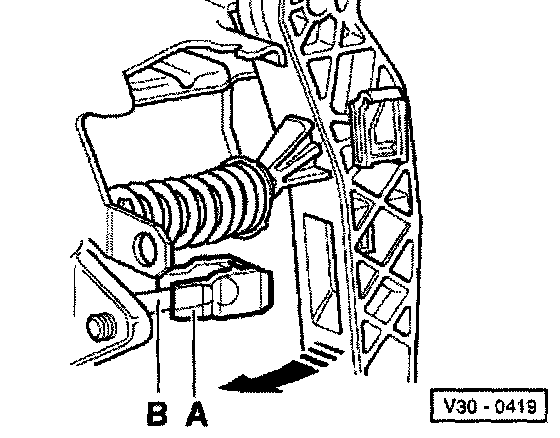

- The retainer - A - must be fitted to the master cylinder operating rod - B -.
- Press clutch pedal in direction of arrow to engage, while checking for proper positioning.
