Ball Joint: Testing and Inspection

Ball joint, checking

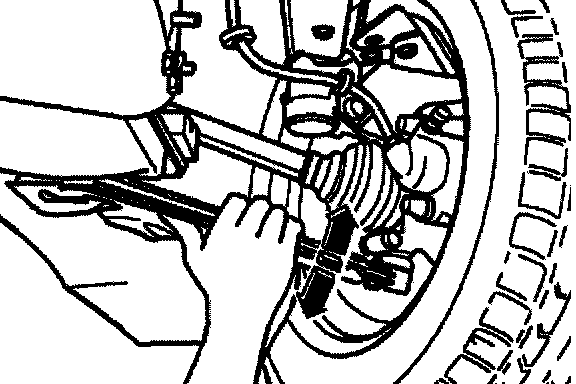

Checking axial clearance





- Pull ball joint down firmly and press up again.

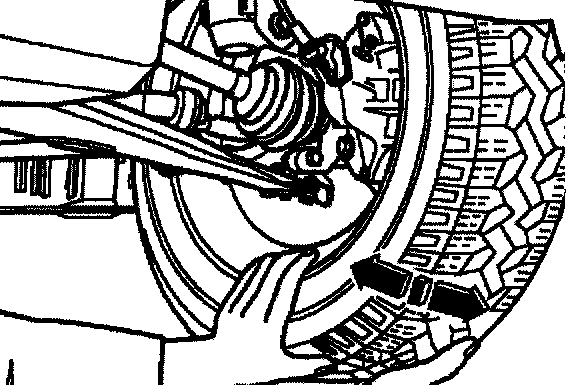

Checking radial play





- Press lower part of wheel firmly outward and inward.

Notes:
- There must be no perceptible or visual 'play" when carrying out both tests.
- Observe ball joint during checks.
- Take into account possible existing wheel bearing play or "play" in upper suspension strut mounting.
- Check rubber boot for damage; replace ball joint if necessary.
