Fuse Panel

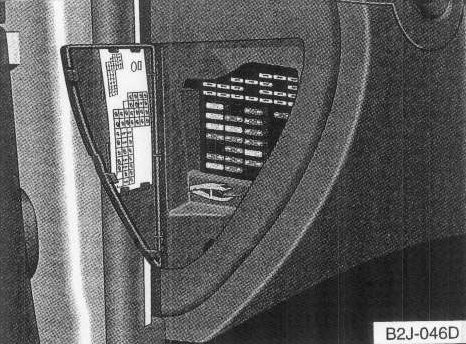

Fuse Panel Location




The fuse panel is located behind a cover on the driver side end panel of the instrument panel (dashboard).
