Ribbed Belt Pulley, Removing and Installing

Ribbed Belt Pulley, Removing And Installing

Special tools, testers and auxiliary items

- Socket 3310

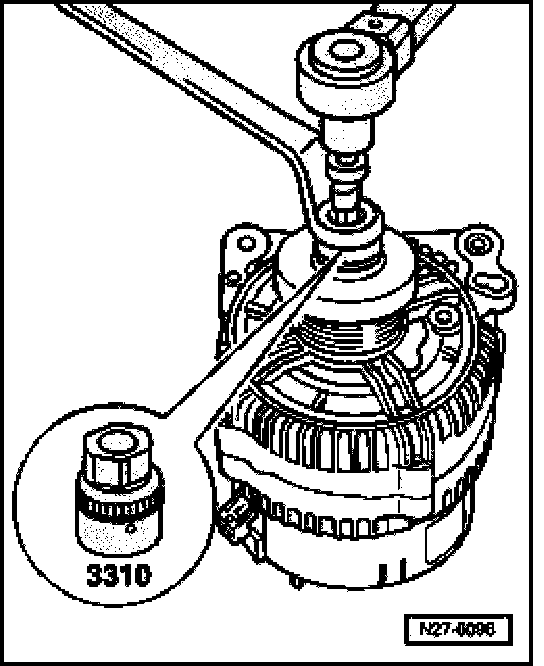

- Counter-hold securing nut using socket 3310.

- To remove, turn generator shaft clockwise
- To install, turn generator shaft counter-clockwise
- Tightening torque: 65 Nm
