Ribbed Belt Pulley With Free-Wheel, Removing and Installing

Ribbed Belt Pulley With Free-wheel, Removing And Installing

Special tools, testers and auxiliary items

- Adapter 3400

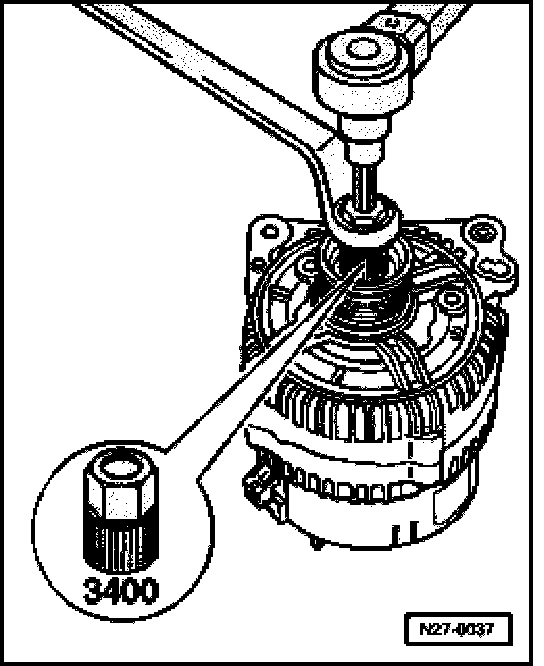

- Counter-hold securing nut using adapter 3400.
- To remove, turn generator shaft clockwise
- To install, turn generator shaft counter-clockwise
- Tightening torque: 80 Nm

- Clip protective cap onto free-wheel pulley.
