Seat Belt Anchorage Points, Overview - Roadster

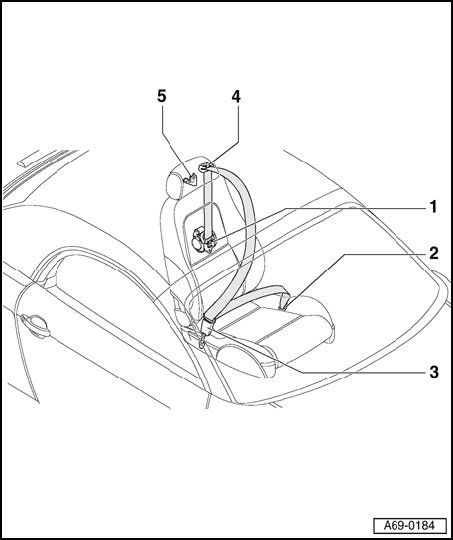

Seat Belt Anchorage Points (overview)







1 - Three-point seat belt with belt tensioner
2 - Anchorage point for outer floor assembly
3 - Buckle anchorage point
4 - Anchorage point for seat belt guide
5 - Seat belt guide console
