Anchorage Point For Seat Belt Guide

Anchorage Point For Seat Belt Guide

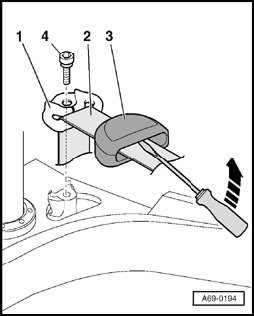

- Remove anchorage point for outer floor assembly
- Using a screwdriver, carefully pry out trim for seat belt guide - 3 - by pressing in direction of - arrow -.







- Remove bolt - 4 -.
- Tightening torque 55 Nm
- Remove trim for seat belt guide - 3 - from seat belt - 2 -.

1 - Seat belt guide
