Coupe
Seat Belts - Coupe

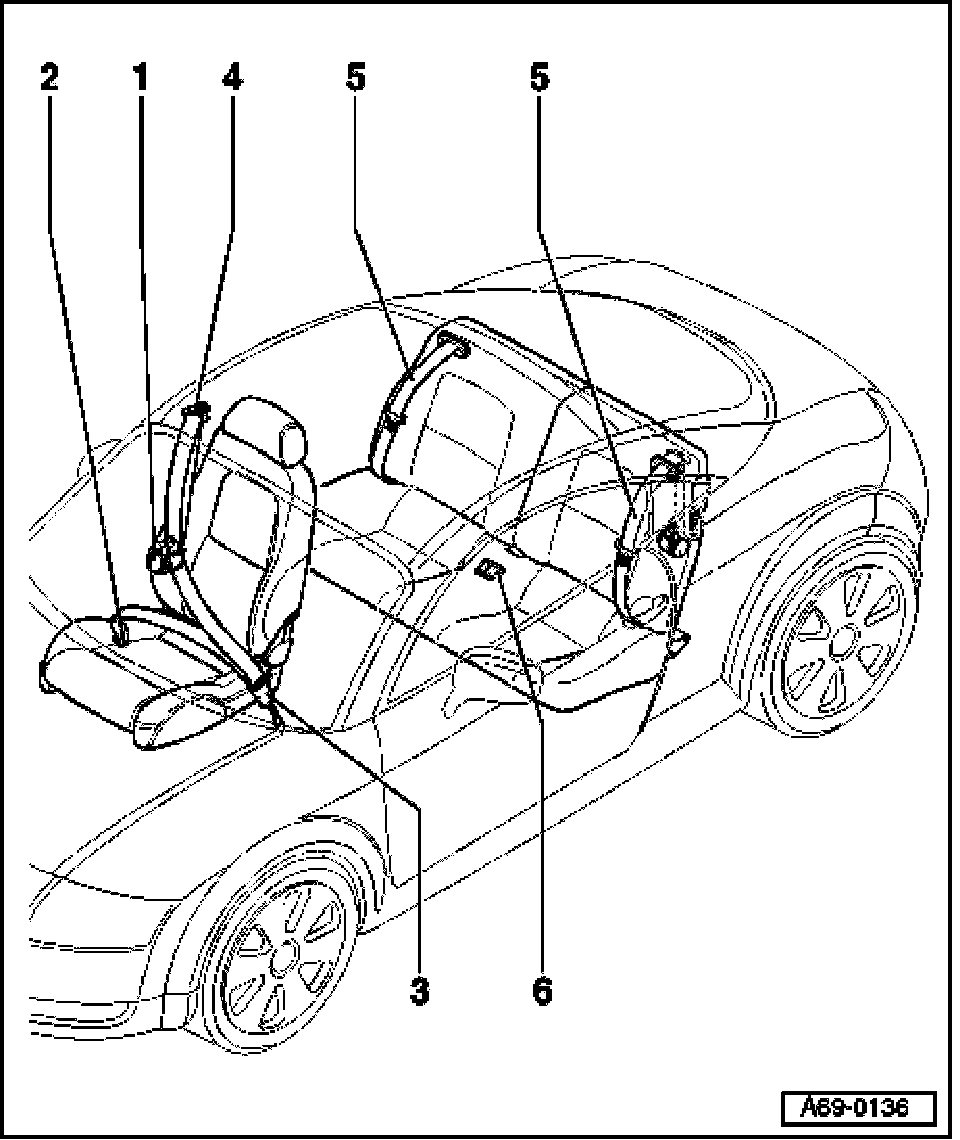

Seat belt anchorage points, overview
1 - Three-point seat belt with belt tensioner
2 - Outer floor panel anchorage point
3 - Anchorage point for belt buckle
4 - Anchorage point for guide fitting
5 - Three-point seat belt, rear left and right
6 - Center floor panel anchorage point
