Seat Belt Guide Console

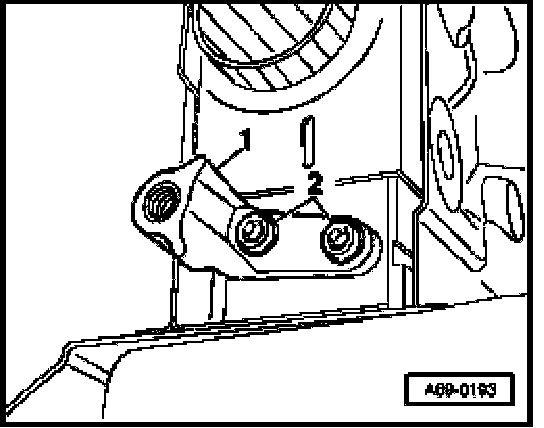

Seat Belt Guide Console (Roadster)







- Remove bolts -2- (2x).
- Tightening torque: 20 Nm
- Remove seat belt guide console-1-
