Anchorage Point For Seat Belt Guide

Anchorage Point For Seat Belt Guide (Roadster)

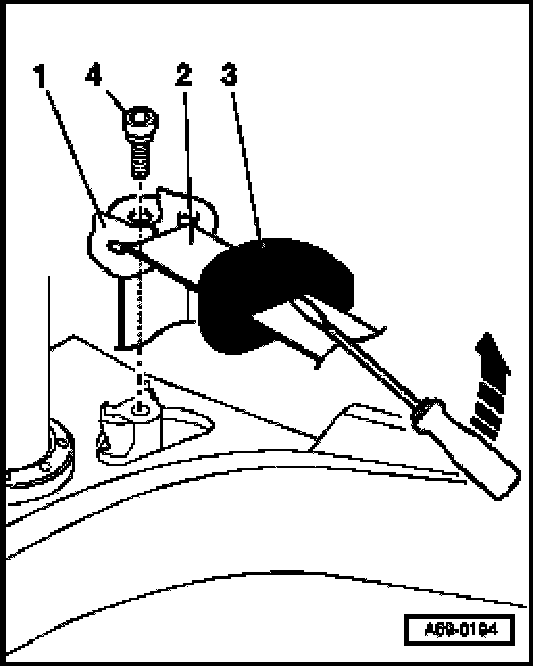

- Remove anchorage point for outer floor assembly.
- Using a screwdriver, carefully pry out trim for seat belt guide -3- by pressing in direction of arrow.







- Remove bolt -4-.
- Tightening torque: 55 Nm
- Remove trim for seat belt guide -3- from seat belt -2-

1 - Seat belt guide
