Anchorage Point For Belt Guide Fitting

Anchorage Point For Belt Guide Fitting (Coupe)

- Remove anchorage point on outer floor panel.
- Remove side trim.

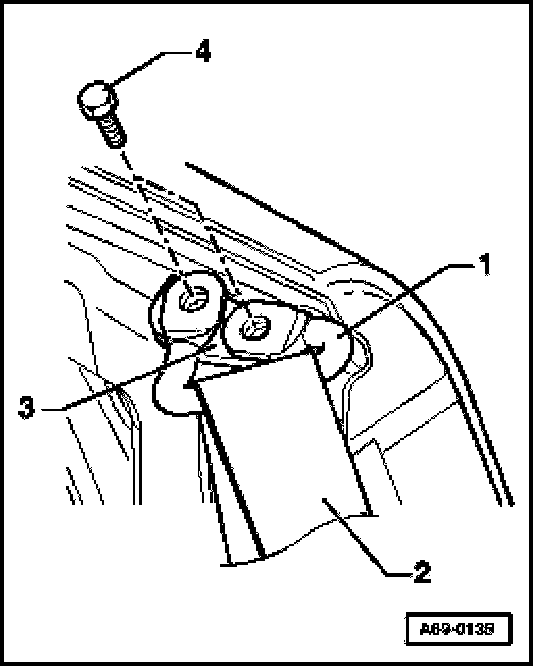

- Remove screws -4- (2x).

Tightening torque: 55 Nm (41 ft lb)

- Thread guide fitting -1- out of belt -2-.
- When installing, make sure to install washer -3-
