Seat Belt Buckle: Service and Repair

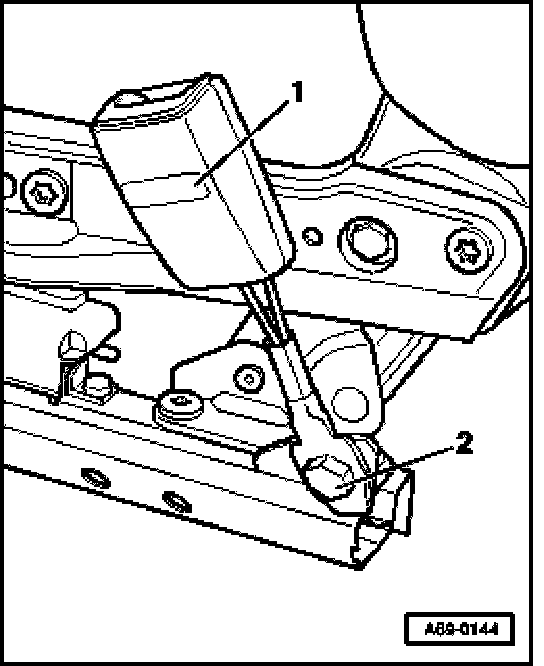

Anchorage Point For Belt Buckle (Coupe)







- Remove seat.
1 - Belt buckle
- Remove screw -2-.

Tightening torque: 24 Nm (18 ft lb)
