Wiring For Side Airbag, Removing From Seat Pan

Wiring For Side-airbag, Removing From Seat Pan

- Disconnect harness connector for backrest heater - 2 -.
- Disconnect harness connector to seat belt lock.
- Remove cable ties - 3 - and - 4 - from seat pan.
- Cut through cable ties - 3 -, - 4 - and - 5 -.
- Release bowden cable from clip - 6 - and unhook bowden cable at retaining spring.

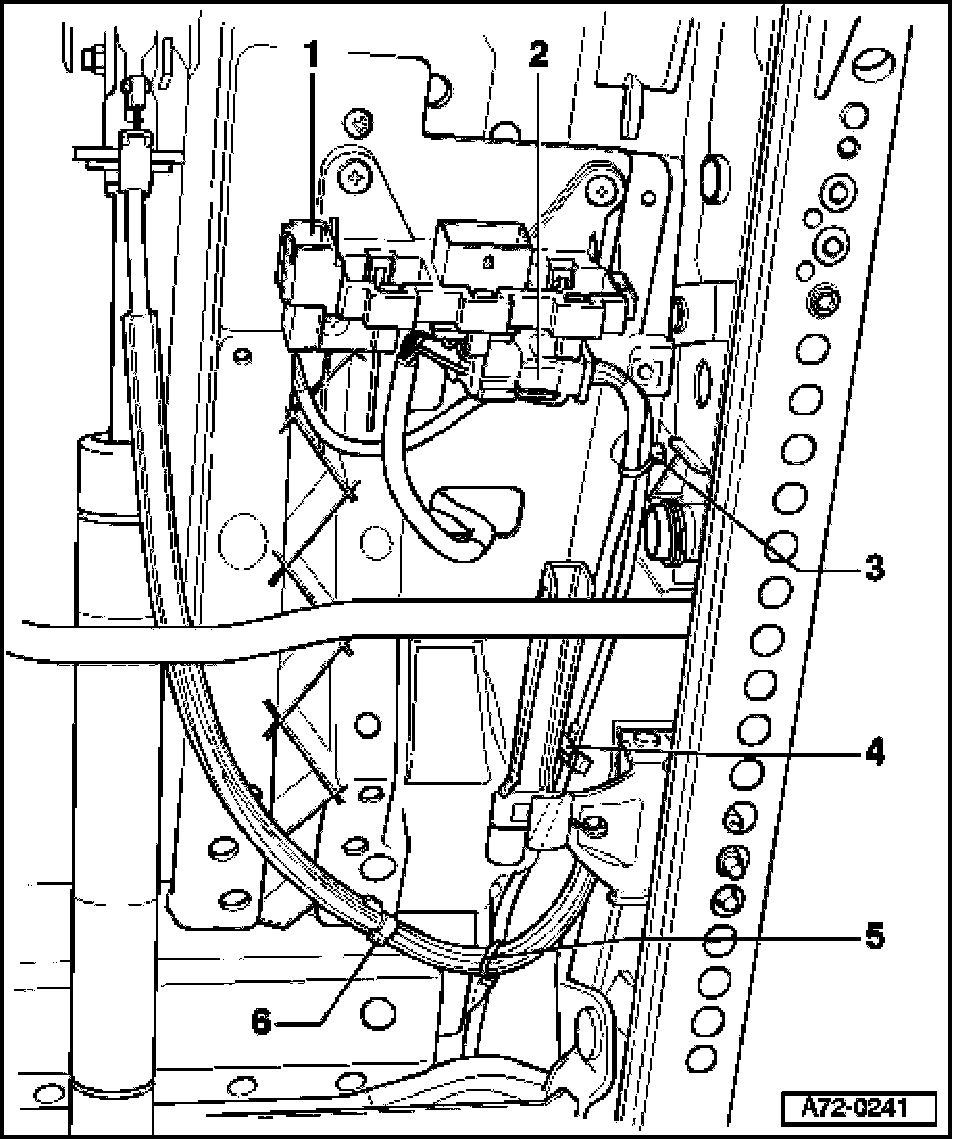

1 - Airbag connector
2 - Connector for backrest heater
3 - Cable tie
4 - Cable tie
5 - Cable tie
- After cutting cable tie, remove cable tie but do not replace
6 - Clip
