Side Airbag Connector, Disconnecting

Side Air-bag Connector, Disconnecting

NOTE:
- Before disconnecting igniter and Ground (GND) wiring, the technician must discharge static electricity by briefly touching door lock striker or bodywork.
- Parts are shown disassembled in magnified views for better illustration.

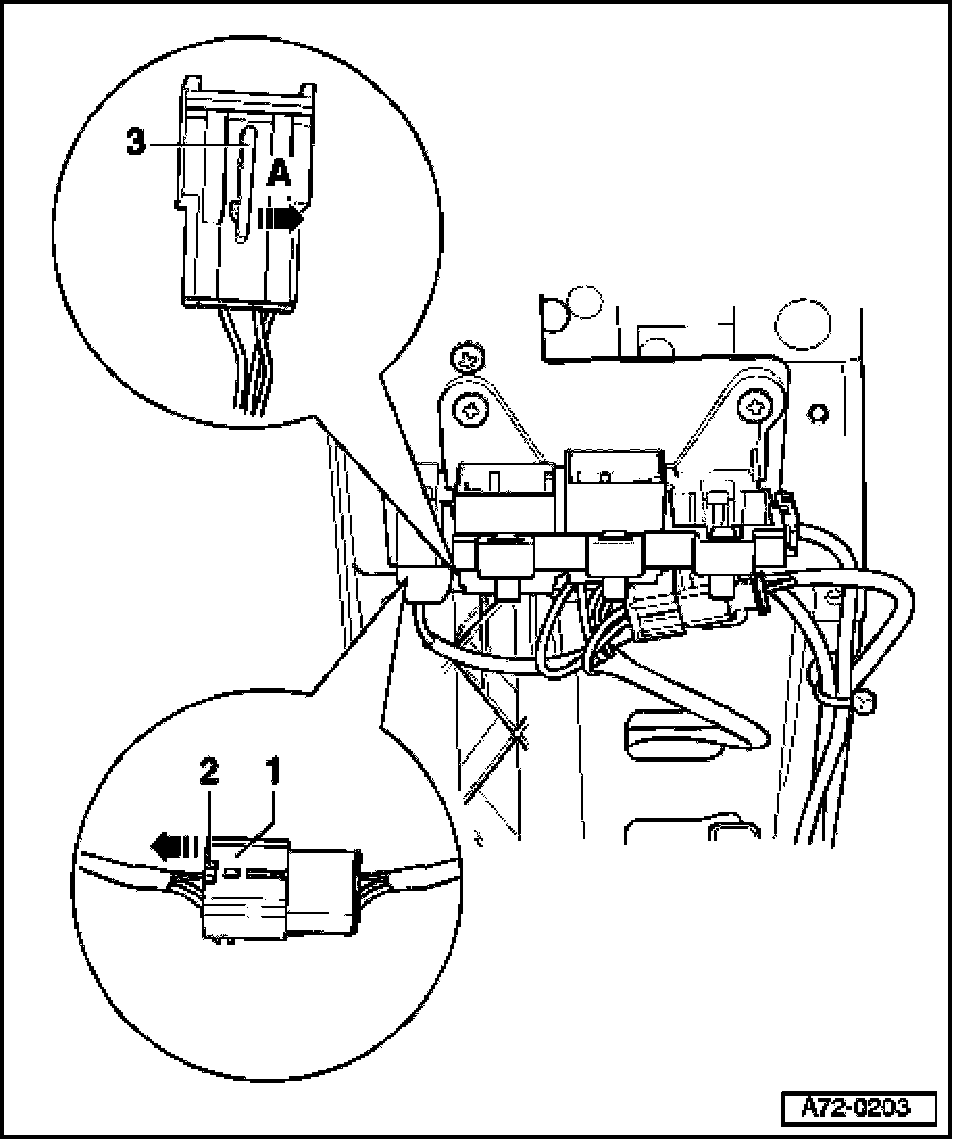

1 Airbag connector
- Pull retainer tab -3- with one finger in direction of arrow -A-.
- At the same time, pull side-airbag connector with other hand to the rear.
- Press retainer tab -2- and pull off connector -1- in direction of arrow.
2 Retainer tab
3 Retainer tab
