Fuel Pump, Sender and Fuel Level Sensor, Component Overview

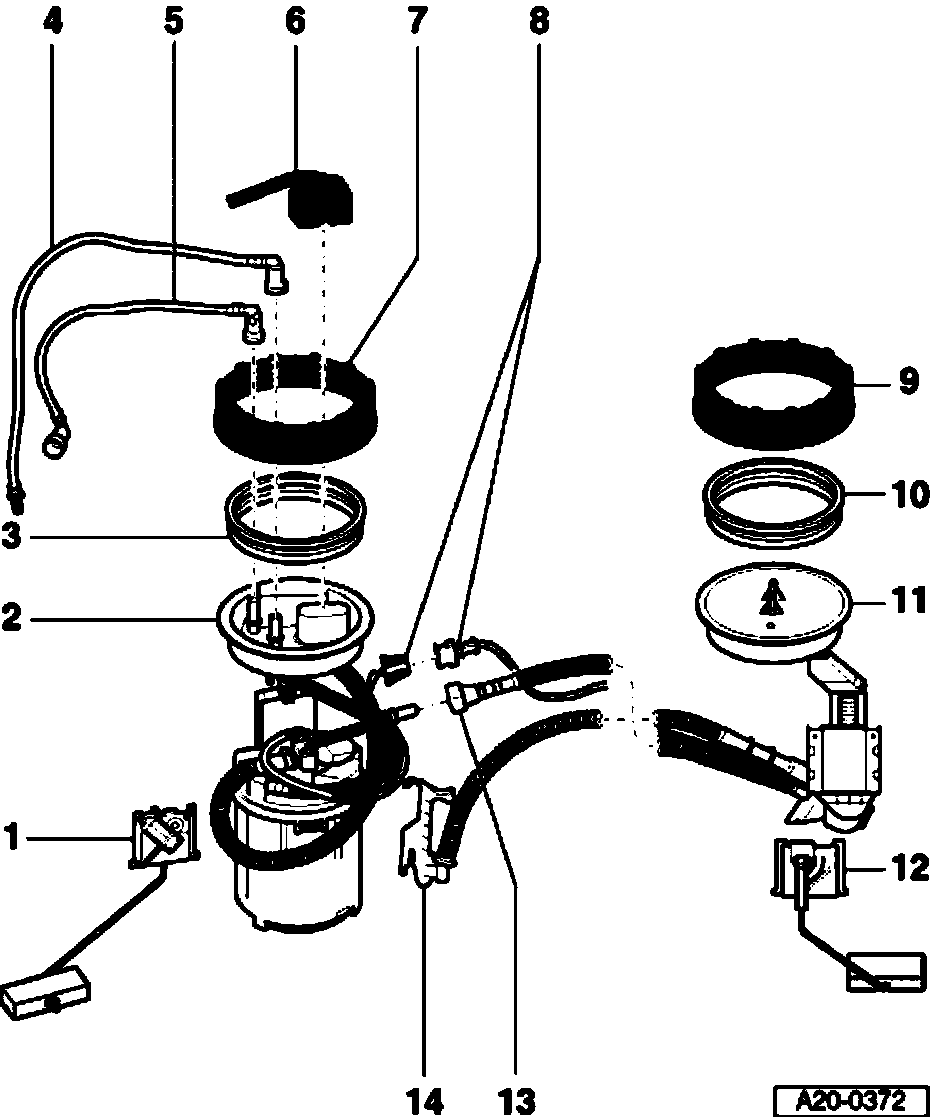

Fuel pump, Sender for fuel gauge -G- and Fuel level sensor 2 -G169-, component overview





1. Sender for fuel gauge -G
2. Fuel pump
3. Seal
^ Always replace
^ To install, place into opening of fuel tank when dry.
4. Return line
^ Blue
^ From fuel rail
^ Attaches to connection with "R" marking at connector flange
^ To remove connector flange, press release button on connecting piece
5. Supply line
^ Black
^ To fuel filter
^ Attaches to connection with "V" marking at connector flange
^ To remove from connector flange or from filter, press release button on connecting piece.
6. 4-pin harness connector
^ For Fuel Pump (FP), Sender for fuel gauge -Grand Fuel Level Sensor 2-G169
7. Union nut - 80 Nm
^ Use ring nut spanner 3217 to remove and install
8. 2-pin harness connector
^ For Fuel Level Sensor 2 -G169
9. Union nut - 80 Nm
^ Use ring nut spanner 3217 to remove and install
10. Seal
^ Always replace
^ To install, place into opening of fuel tank when dry.
11. Secondary fuel pump
^ With connecting flange
^ With wiring
12. Fuel Level Sensor 2 -G169
13. Hose coupling
^ For fuel hose to secondary fuel pump
^ To disconnect, press release button
14. Retaining strap
^ For fuel hose from secondary fuel pump
^ Engage in fuel pump and press in locking mechanism
